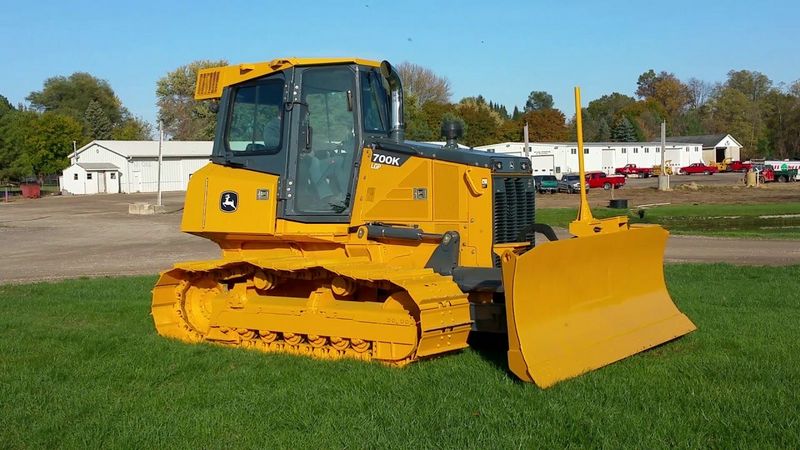

John Deere 700K
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Ground Clearance | 1.29 ft in (393 mm) |
| Track Gauge | 6.5 ft in (1981 mm) |
| Blade Width | 12.01 ft in (3658 mm) |
| Length - Pat Blade Straight | 15.8 ft in (4815 mm) |
| Max Height | 9.64 ft in (2936 mm) |
| Steering - Differential | No |
| Blade-Tilt | 1.59 ft in (482 mm) |
| Track Length On Ground | 8.5 ft in (2590 mm) |
| Blade - Dig Depth | 20.99 in (533 mm) |
Driveline
| Engine Model | PowerTech PVS 6068 |
| Displacement | 415 cu in (6.8 L) |
| Engine Manufacturer | John Deere |
| Rated Speed | 1800 rpm |
| Engine Output - Net | 130.1 hp (97 kw) |
| Transmission Type | Hydrostatic |
| Number Of Shoes | 39 |
| Final Drive | Triple Reduction |
| Ground Contact Area | 15540.2 in (39472 cm) |
| Shoe - Pitch | 75.2 in (191 cm) |
| Track Rollers | 7 |
| Speeds Mode 1 - Forward | 1 |
| Speeds Mode 1 - Reverse | 1 |
| Shoe - Type | Single Grouser - Moderate Service |
Capacities
| Fuel Tank - Diesel | 53.4 gal (202 L) |
| Hydraulic Tank | 26.5 gal (100 L) |
| Blade - Capacity | 6.6 ft in (2 m) |
Performance
| Ground Bearing Pressure | 5.2 psi (35.2 kPa) |
| Implement Pump - Flow | 25.1 gal (95 L) |
| Implement Pump - Pressure | 220.63 |
| Implement Pump - Type | Gear |
| Speed - Reverse Maximum | 8.9 hp (6.7 kw) |
| Speed - Forward Maximum | 8.9 hp (6.7 kw) |
Weights
| Operating Weight | 31290.3 lb (14193 kg) |
