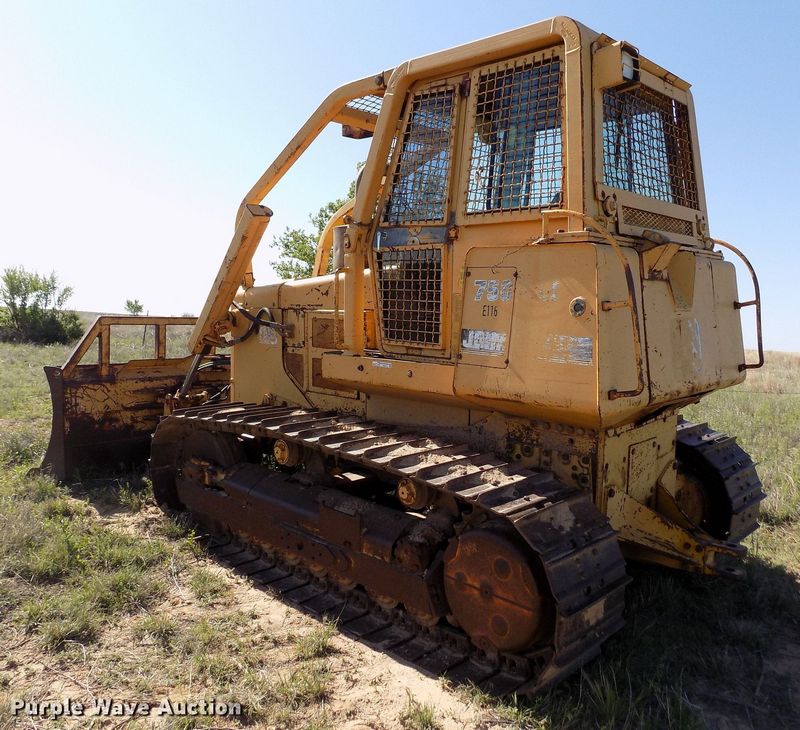

John Deere 750B LT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Height To Top Of Cab | 10.22 ft in (3114 mm) |
| Length Of Track On Ground | 8.42 ft in (2565 mm) |
| Ground Clearance | 1.17 ft in (356 mm) |
Undercarriage
| Standard Shoe Size | 22 in (560 mm) |
| Ground Pressure | 7.1 psi (49 kPa) |
| Ground Contact Area | 4444 in2 (2.87 m2) |
| Number Of Shoes Per Side | 43 |
| Number Of Track Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068T |
| Gross Power | 148 hp (110.4 kw) |
| Net Power | 140 hp (104.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 420 lb ft (569.5 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharger |
Operational
| Operating Weight | 31530 lb (14300 kg) |
| Fuel Capacity | 73 gal (276.3 L) |
| Cooling System Fluid Capacity | 7 gal (26.5 L) |
| Hydraulic Fluid Capacity | 33 gal (125 L) |
| Powertrain Fluid Capacity | 33 gal (125 L) |
| Final Drives Fluid Capacity | 8.5 gal (32.2 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
Transmission
| Transmission Type | Automatic, dual-path, hydrostatic drive |
| Max Speed - Forward | 6.5 mph (10.5 km/h) |
| Max Speed - Reverse | 6.5 mph (10.5 km/h) |
Hydraulic System
| Pump Type | Vane |
| Relief Valve Pressure | 2000 psi (13790 kPa) |
| Pump Flow Capacity | 38 gal/min (144 L/min) |
Standard Blade
| Height | 42.2 in (1072 mm) |
| Capacity | 3 yd3 (2.3 m3) |
| Cutting Depth | 20.2 in (513 mm) |
