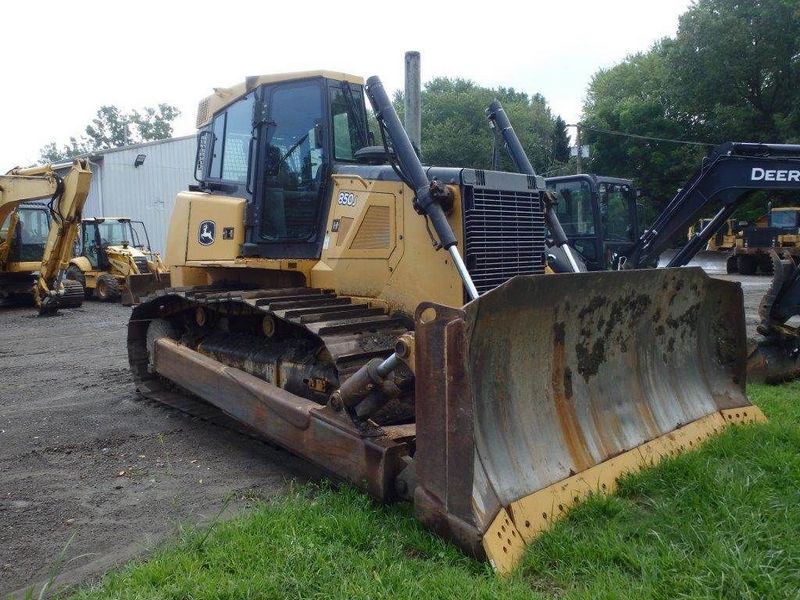

John Deere 850J WT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.68 ft in (5377 mm) |
| Width Over Tracks | 9.17 ft in (2794 mm) |
| Height To Top Of Cab | 10.42 ft in (3180 mm) |
| Length Of Track On Ground | 9.09 ft in (2770 mm) |
| Ground Clearance | 1.35 ft in (408.5 mm) |
Undercarriage
| Track Gauge | 6.67 ft in (2032 mm) |
| Standard Shoe Size | 30 in (762 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 6.26 psi (43.1 kPa) |
| Number Of Shoes Per Side | 40 |
| Ground Contact Area | 6540 in2 (4.22 m2) |
| Track Pitch | 8 in (200 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6090HT |
| Gross Power | 192 hp (143.2 kw) |
| Net Power | 185 hp (138 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 611 lb ft (828.5 Nm) |
| Displacement | 550 cu in (9.1 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged w/ aftercooler |
Operational
| Operating Weight | 40977.4 lb (18587 kg) |
| Fuel Capacity | 98 gal (371 L) |
| Cooling System Fluid Capacity | 9.2 gal (34.5 L) |
| Engine Oil Capacity | 7.1 gal (26.5 L) |
| Hydraulic Fluid Capacity | 27.9 gal (105.6 L) |
| Powertrain Fluid Capacity | 27.9 gal (105.6 L) |
| Final Drives Fluid Capacity | 4.4 gal (16.3 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 6.3 mph (10.1 km/h) |
| Max Speed - Reverse | 6.3 mph (10.1 km/h) |
Hydraulic System
| Pump Type | Piston |
| Relief Valve Pressure | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 46 gal/min (174 L/min) |
Standard Blade
| Width | 11.7 ft in (3556 mm) |
| Height | 54.2 in (1375 mm) |
| Capacity | 7.7 yd3 (5.9 m3) |
| Cutting Depth | 23.6 in (600 mm) |
