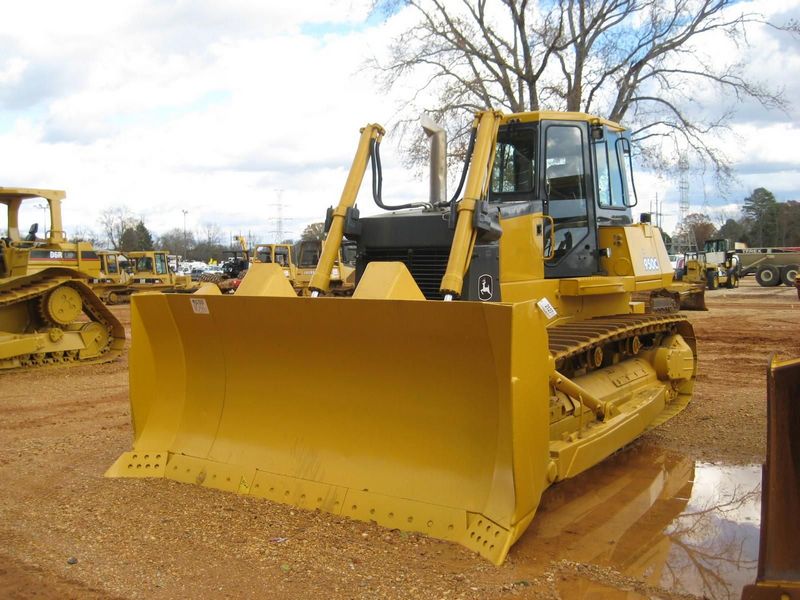

John Deere 950C LT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 9.76 ft in (2974 mm) |
| Height To Top Of Cab | 10.85 ft in (3305 mm) |
| Length Of Track On Ground | 10.75 ft in (3275 mm) |
| Ground Clearance | 1.59 ft in (482 mm) |
| Length W/O Blade | 14.11 ft in (4300 mm) |
Undercarriage
| Track Gauge | 6.5 ft in (1980 mm) |
| Ground Pressure | 10.1 psi (71 kPa) |
| Track Pitch | 8.5 in (215.9 mm) |
| Ground Contact Area | 5160 in2 (3.33 m2) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 43 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2245 |
| Engine Model | D 926 TI |
| Net Power | 230 hp (171.6 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 797 lb ft (1080.6 Nm) |
| Displacement | 610 cu in (10 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Intercooled and turbocharged |
Operational
| Operating Weight | 52300 lb (23700 kg) |
| Fuel Capacity | 119 gal (450 L) |
| Cooling System Fluid Capacity | 17.6 gal (64.4 L) |
| Engine Oil Capacity | 6.7 gal (25.5 L) |
| Hydraulic Fluid Capacity | 47 gal (178 L) |
| Powertrain Fluid Capacity | 47 gal (178 L) |
| Final Drives Fluid Capacity | 3.8 gal (14.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Dual-path, electronic-controlled, closed-loop hydrostatic drive |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (11 km/h) |
| Max Speed - Reverse | 6.8 mph (11 km/h) |
Hydraulic System
| Pump Type | Variable-displacement piston pump with load-sensing proportional pump flow |
| Relief Valve Pressure | 2320 psi (16000 kPa) |
| Pump Flow Capacity | 77 gal/min (292 L/min) |
Standard Blade
| Width | 13.1 ft in (3965 mm) |
| Height | 57 in (1450 mm) |
| Capacity | 9.5 yd3 (7.2 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 21 in (525 mm) |
