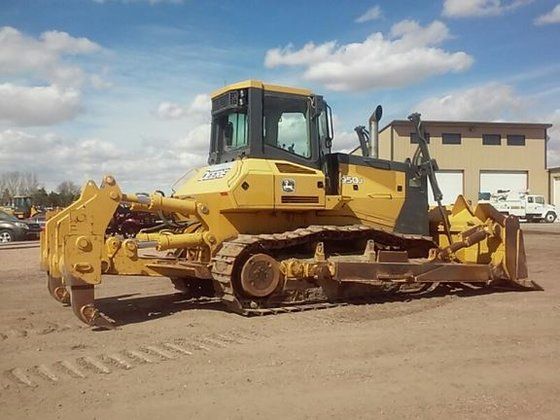

John Deere 950J
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 19.83 ft in (6050 mm) |
| Width Over Tracks | 8.5 ft in (2590 mm) |
| Height To Top Of Cab | 11.26 ft in (3430 mm) |
| Length Of Track On Ground | 9.83 ft in (2997 mm) |
| Ground Clearance | 1.75 ft in (533 mm) |
Undercarriage
| Track Gauge | 6.5 ft in (1981 mm) |
| Standard Shoe Size | 24 in (610 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 10.1 psi (69.64 kPa) |
| Number Of Shoes Per Side | 40 |
| Ground Contact Area | 5667 in2 (3.66 m2) |
| Track Pitch | 8.51 in (216 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2245 |
| Engine Model | D 936-L A6 |
| Net Power | 247 hp (184 kw) |
| Power Measured @ | 1600 rpm |
| Max Torque | 937 lb ft (1270 Nm) |
| Displacement | 641 cu in (10.5 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharger w/ intercooler |
Operational
| Operating Weight | 56361 lb (25565 kg) |
| Fuel Capacity | 141 gal (534 L) |
| Cooling System Fluid Capacity | 16.4 gal (62 L) |
| Engine Oil Capacity | 11.4 gal (43 L) |
| Hydraulic Fluid Capacity | 50 gal (189 L) |
| Final Drives Fluid Capacity | 5.2 gal (19.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Transmission
| Transmission Type | Hydrostatic with direct drive |
| Max Speed - Forward | 6.8 mph (10.9 km/h) |
| Max Speed - Reverse | 6.8 mph (10.9 km/h) |
Hydraulic System
| Pump Type | Variable axial-piston |
| Relief Valve Pressure | 3770 psi (25993.3 kPa) |
| Pump Flow Capacity | 68 gal/min (257 L/min) |
Standard Blade
| Width | 12.1 ft in (3700 mm) |
| Height | 61 in (1550 mm) |
| Capacity | 9.4 yd3 (7.2 m3) |
| Cutting Depth | 20 in (511 mm) |
