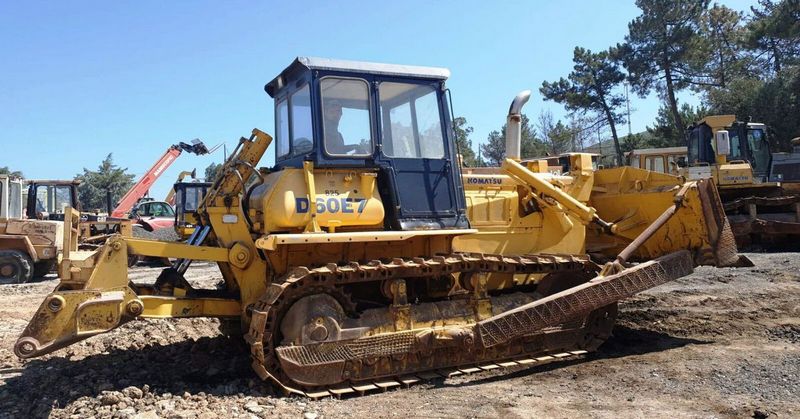

Komatsu D60E-7
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 7.85 ft in (2390 mm) |
| Height To Top Of Cab | 9.9 ft in (3015 mm) |
| Length Of Track On Ground | 8.65 ft in (2635 mm) |
| Length W/O Blade | 17.54 ft in (5345 mm) |
Undercarriage
| Track Gauge | 6.17 ft in (1880 mm) |
| Standard Shoe Size | 20.08 in (510 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 7.4 psi (51.03 kPa) |
Engine
| Engine Make | 2347 |
| Engine Model | NH220-CI |
| Gross Power | 165 hp (123.1 kw) |
| Displacement | 743 cu in (12.2 L) |
Operational
| Operating Weight | 29740 lb (13489.9 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Cooling System Fluid Capacity | 14.6 gal (55 L) |
Transmission
| Transmission Type | helical gear constant mesh type |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 6.9 mph (11.1 km/h) |
| Max Speed - Reverse | 6.2 mph (9.9 km/h) |
Standard Blade
| Width | 13.1 ft in (3970 mm) |
| Height | 41.4 in (1050 mm) |
| Cutting Depth | 21.3 in (540 mm) |
