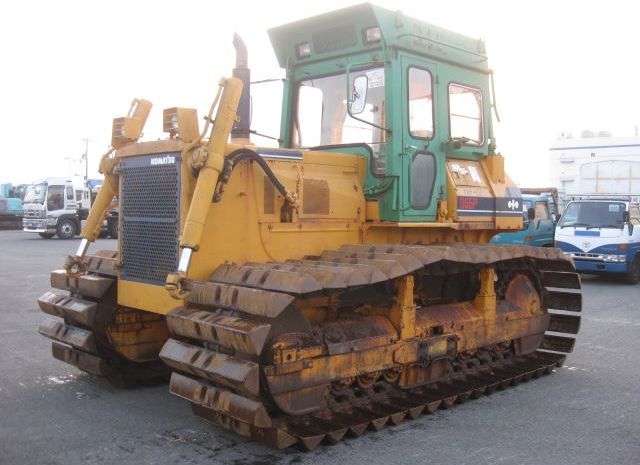

Komatsu D65P-11
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 18.34 ft in (5590 mm) |
| Width Over Tracks | 9.85 ft in (3000 mm) |
| Height To Top Of Cab | 10.08 ft in (3070 mm) |
| Length Of Track On Ground | 10.31 ft in (3140 mm) |
| Ground Clearance | 1.68 ft in (510 mm) |
| Length W/O Blade | 14.15 ft in (4310 mm) |
Undercarriage
| Track Gauge | 6.73 ft in (2050 mm) |
| Standard Shoe Size | 37.41 in (950 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Track Pitch | 8 in (203.2 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | 6D125-1 |
| Gross Power | 170 hp (126.8 kw) |
| Power Measured @ | 1850 rpm |
| Displacement | 671.3 cu in (11 L) |
Operational
| Operating Weight | 41006 lb (18600 kg) |
Transmission
| Transmission Type | TC,PS |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 13.1 ft in (3970 mm) |
| Height | 41.4 in (1050 mm) |
