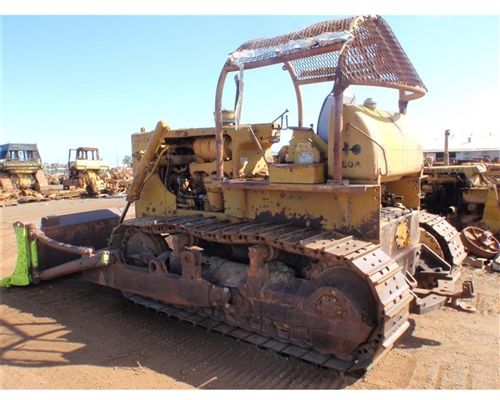

Komatsu D80A-12
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 22.35 ft in (6810 mm) |
| Width Over Tracks | 8.53 ft in (2600 mm) |
| Height To Top Of Cab | 10.62 ft in (3235 mm) |
| Length Of Track On Ground | 8.97 ft in (2730 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Length W/O Blade | 15.08 ft in (4595 mm) |
Undercarriage
| Track Gauge | 6.56 ft in (2000 mm) |
| Standard Shoe Size | 22.05 in (560 mm) |
| Number Of Shoes Per Side | 38 |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 8.25 psi (56.89 kPa) |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 8.51 in (216 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | NH-220-CI |
| Gross Power | 180 hp (134.3 kw) |
| Power Measured @ | 1850 rpm |
| Displacement | 742.7 cu in (12.2 L) |
Operational
| Operating Weight | 47509.7 lb (21550 kg) |
| Fuel Capacity | 111 gal (420 L) |
| Cooling System Fluid Capacity | 17.2 gal (65 L) |
Transmission
| Transmission Type | DD |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 4.6 mph (7.4 km/h) |
| Max Speed - Reverse | 6 mph (9.6 km/h) |
Standard Blade
| Width | 11.9 ft in (3620 mm) |
| Height | 50.4 in (1280 mm) |
| Capacity | 7.8 yd3 (6 m3) |
| Cutting Depth | 21.3 in (540 mm) |
