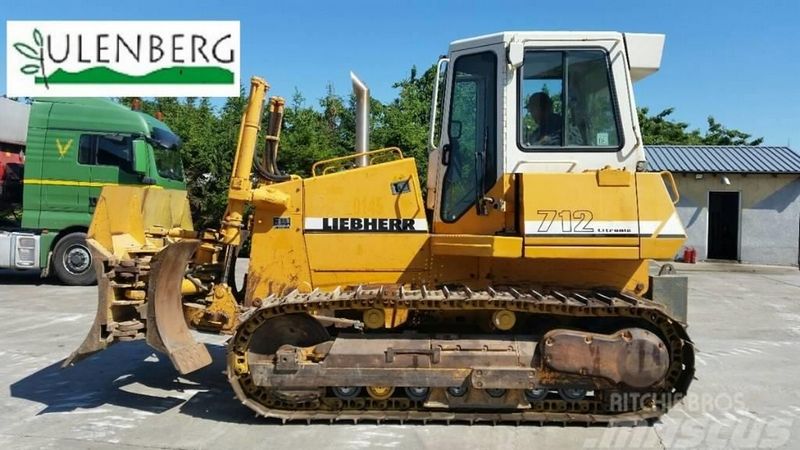

Liebherr PR712B
Browse All Liebherr or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 15.31 ft in (4665 mm) |
| Width Over Tracks | 9.02 ft in (2748 mm) |
| Height To Top Of Cab | 10.18 ft in (3100 mm) |
| Length Of Track On Ground | 8.58 ft in (2615 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Length W/O Blade | 12.06 ft in (3675 mm) |
Undercarriage
| Track Gauge | 5.75 ft in (1750 mm) |
| Standard Shoe Size | 22.05 in (560 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 7.11 psi (49.03 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D 924 T-E |
| Net Power | 105 hp (78.3 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 409 cu in (6.8 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 30000 lb (13607.8 kg) |
| Fuel Capacity | 81.9 gal (310 L) |
| Cooling System Fluid Capacity | 13.8 gal (52 L) |
| Engine Oil Capacity | 4.8 gal (18 L) |
| Hydraulic Fluid Capacity | 47.1 gal (178 L) |
| Final Drives Fluid Capacity | 1.5 gal (5.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (11 km/h) |
Hydraulic System
| Pump Type | Load sensing proportional pump flow control |
| Relief Valve Pressure | 2300 psi (15858 kPa) |
| Pump Flow Capacity | 30 gal/min (113.6 L/min) |
Standard Blade
| Width | 9.9 ft in (3000 mm) |
| Height | 37.5 in (950 mm) |
| Capacity | 2.8 yd3 (2.2 m3) |
