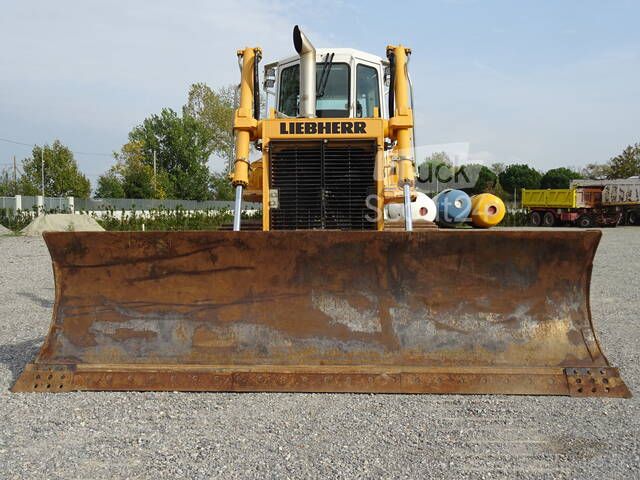

Liebherr PR734 XL
Browse All Liebherr or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 19.53 ft in (5950 mm) |
| Width Over Tracks | 8.94 ft in (2724 mm) |
| Height To Top Of Cab | 10.72 ft in (3266 mm) |
| Length Of Track On Ground | 10.63 ft in (3240 mm) |
| Ground Clearance | 1.65 ft in (500 mm) |
| Length W/O Blade | 14.08 ft in (4291 mm) |
Undercarriage
| Standard Shoe Size | 24 in (609.6 mm) |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 7.68 psi (52.96 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2245 |
| Engine Model | D 926 TI-E |
| Gross Power | 200 hp (149.2 kw) |
| Net Power | 197 hp (147 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 610 cu in (10 L) |
| Aspiration | Direct injection turbo-charged |
Operational
| Operating Weight | 47406 lb (21503 kg) |
| Fuel Capacity | 116.3 gal (440 L) |
| Cooling System Fluid Capacity | 11.4 gal (43 L) |
| Engine Oil Capacity | 5.9 gal (22 L) |
| Hydraulic Fluid Capacity | 42.8 gal (162 L) |
| Final Drives Fluid Capacity | 3.7 gal (14 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Hydrostatic travel drive and control |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 6.9 mph (11 km/h) |
| Max Speed - Reverse | 4.8 mph (7.8 km/h) |
Hydraulic System
| Pump Type | swash plate piston pump |
| Relief Valve Pressure | 2900 psi (19994.8 kPa) |
| Pump Flow Capacity | 55.3 gal/min (209 L/min) |
Standard Blade
| Width | 11.1 ft in (3363 mm) |
| Height | 55.2 in (1400 mm) |
| Capacity | 7.7 yd3 (5.9 m3) |
| Cutting Depth | 22 in (558 mm) |
