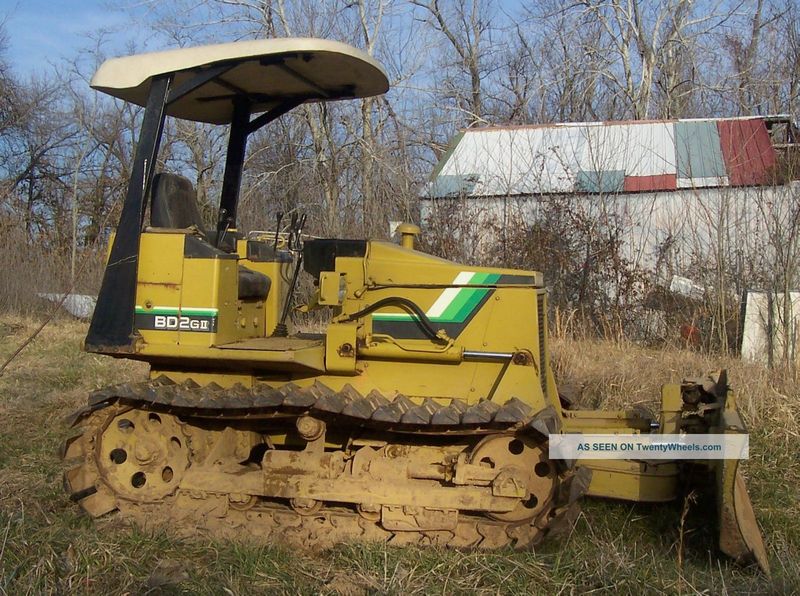

Mitsubishi BD2G-2-2B5
Browse All Mitsubishi or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 11.09 ft in (3380 mm) |
| Width Over Tracks | 4.93 ft in (1500 mm) |
| Height To Top Of Cab | 7.68 ft in (2340 mm) |
| Length Of Track On Ground | 5.71 ft in (1740 mm) |
| Ground Clearance | 0.99 ft in (300 mm) |
| Length W/O Blade | 7.91 ft in (2410 mm) |
Undercarriage
| Track Gauge | 3.94 ft in (1200 mm) |
| Standard Shoe Size | 11.82 in (300 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | C S4E2 |
| Gross Power | 40 hp (29.9 kw) |
| Displacement | 180.4 cu in (3 L) |
Operational
| Operating Weight | 8333.5 lb (3780 kg) |
Transmission
| Transmission Type | DPS |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 7.4 ft in (2230 mm) |
| Height | 23.3 in (590 mm) |
