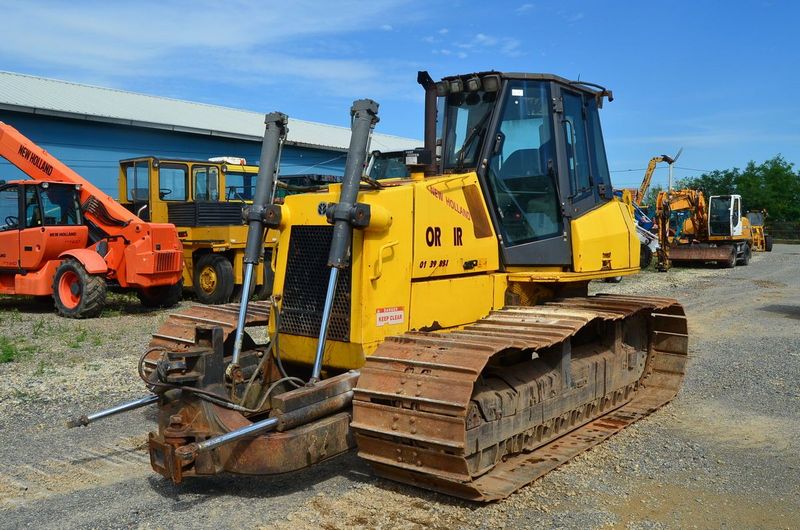

New Holland D150
Browse All New Holland or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 15.59 ft in (4750 mm) |
| Width Over Tracks | 7.88 ft in (2400 mm) |
| Height To Top Of Cab | 10.11 ft in (3080 mm) |
| Length Of Track On Ground | 8.37 ft in (2550 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Length W/O Blade | 11.98 ft in (3650 mm) |
Undercarriage
| Track Gauge | 6.24 ft in (1900 mm) |
| Standard Shoe Size | 19.69 in (500 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Ground Pressure | 8.4 psi (57.86 kPa) |
| Ground Contact Area | 39525.08 in2 (25.5 m2) |
| Number Of Shoes Per Side | 43 |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6BTAA5.9 |
| Net Power | 140 hp (104.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 479.5 lb ft (650 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbo-aftercooler |
Operational
| Operating Weight | 32760.7 lb (14860 kg) |
| Fuel Capacity | 71.4 gal (270 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Engine Oil Capacity | 3.8 gal (14.2 L) |
| Hydraulic Fluid Capacity | 16.7 gal (63 L) |
| Final Drives Fluid Capacity | 6.9 gal (26 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Transmission
| Transmission Type | Full PowerShift, CounterShaft, Constant Mesh |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.9 mph (11 km/h) |
| Max Speed - Reverse | 8.1 mph (13 km/h) |
Hydraulic System
| Pump Type | Variable Displacement Pump |
| Relief Valve Pressure | 2755.8 psi (19000 kPa) |
Standard Blade
| Width | 10.5 ft in (3180 mm) |
| Height | 43.4 in (1100 mm) |
| Capacity | 4.1 yd3 (3.1 m3) |
| Blade Angle (Both Directions) | 10 degrees |
| Cutting Depth | 16 in (406 mm) |
