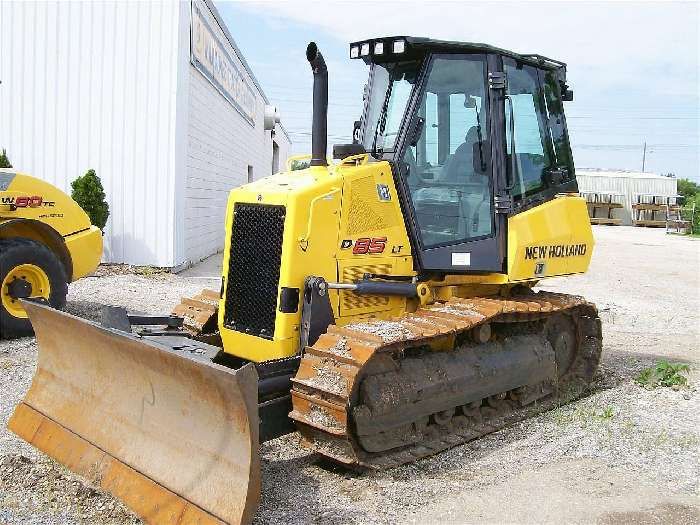

New Holland D85 LT
Browse All New Holland or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 16.89 ft in (5147 mm) |
| Width Over Tracks | 8.01 ft in (2440 mm) |
| Height To Top Of Cab | 9.1 ft in (2773 mm) |
| Length Of Track On Ground | 7.42 ft in (2260 mm) |
| Ground Clearance | 1.25 ft in (379 mm) |
| Length W/O Blade | 10.35 ft in (3153 mm) |
Undercarriage
| Track Gauge | 5.16 ft in (1570 mm) |
| Standard Shoe Size | 18.12 in (460 mm) |
| Number Of Shoes Per Side | 39 |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 5.88 psi (40.54 kPa) |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 6.74 in (171 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2249 |
| Engine Model | 445T/M2 |
| Gross Power | 89 hp (66.4 kw) |
| Net Power | 84 hp (62.7 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 295.1 lb ft (400 Nm) |
| Displacement | 275 cu in (4.6 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 18900 lb (8572.9 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Cooling System Fluid Capacity | 5 gal (19 L) |
| Engine Oil Capacity | 3.4 gal (12.8 L) |
| Hydraulic Fluid Capacity | 20 gal (75.8 L) |
| Final Drives Fluid Capacity | 3.8 gal (14.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 10 |
| Max Speed - Forward | 6 mph (9.7 km/h) |
Hydraulic System
| Pump Type | Gear |
| Pump Flow Capacity | 20.3 gal/min (76.9 L/min) |
Standard Blade
| Width | 8.7 ft in (2640 mm) |
| Height | 35.9 in (910 mm) |
| Capacity | 2.2 yd3 (1.7 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 19.1 in (483 mm) |
