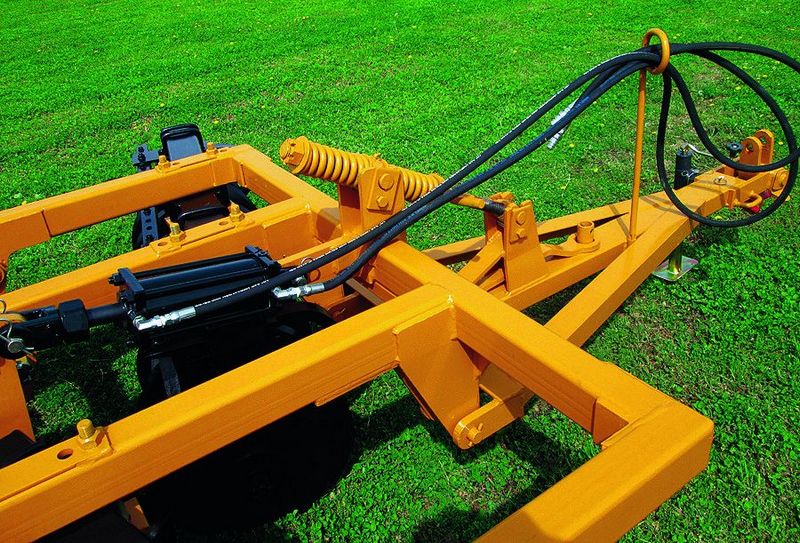

AMCO F15B-10622
Contents:
Dimensions
| Transport Width | 17.5 ft in (5334 mm) |
| Transport Height | 15.75 ft in (4800.61 mm) |
| Min Weight | 14590 lb (6617.92 kg) |
| Working Width Spacing #1 Min | 39 ft in (11887.2 mm) |
Disc System
| Spacing #1 | 9 in (228.6 mm) |
| Blade Diameter | 22 in (558.8 mm) |
| Blade Thickness | 0.2 in (4.6 mm) |
| Depth Control | Dial-A-Depth |
Gangs
| Gang Spool Diameter | 1.5 in (38.1 mm) |
| Bearing Type | Protect-O-Shield |
| Scrapers | High-Carbon replaceable blades on heavy-duty shanks |
| Wing Flex Up | 17 degrees |
