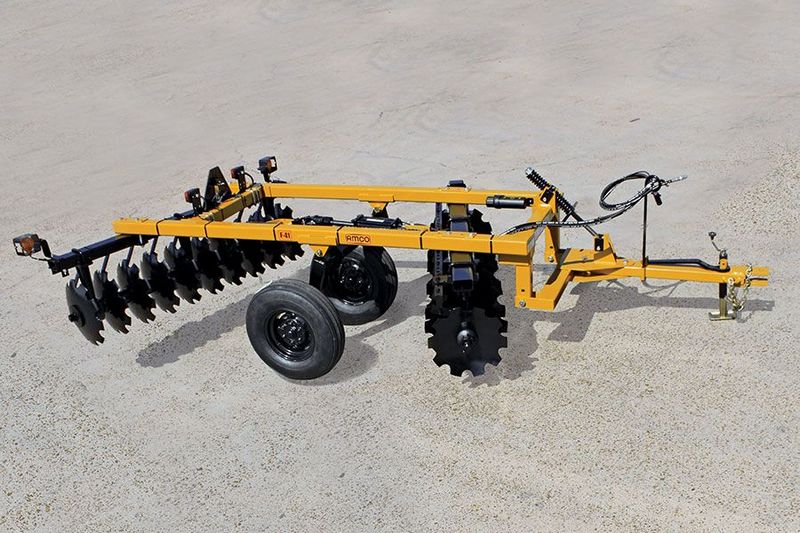

AMCO F41-2224
Contents:
Dimensions
| Transport Width | 8.75 ft in (2667 mm) |
| Main Frame Tires | 9.5l 15 x 6 or 8 ply |
| Min Weight | 2930 lb (1329.03 kg) |
| Pto Power Required Per Width Ft. | 70 hp (52.2 kw) |
| Working Width Spacing #1 Min | 8.25 ft in (2514.6 mm) |
Disc System
| Spacing #1 | 9 in (228.6 mm) |
| Blade Diameter | 24 in (609.6 mm) |
| Blade Thickness | 0.3 in (6.4 mm) |
| Weight Per Blade Spacing #1 | 108 lb (49 kg) |
Gangs
| Front Disk Angle | 17 degrees |
| Rear Disk Angle | 23 degrees |
| Scrapers | Heavy duty high carbon |
