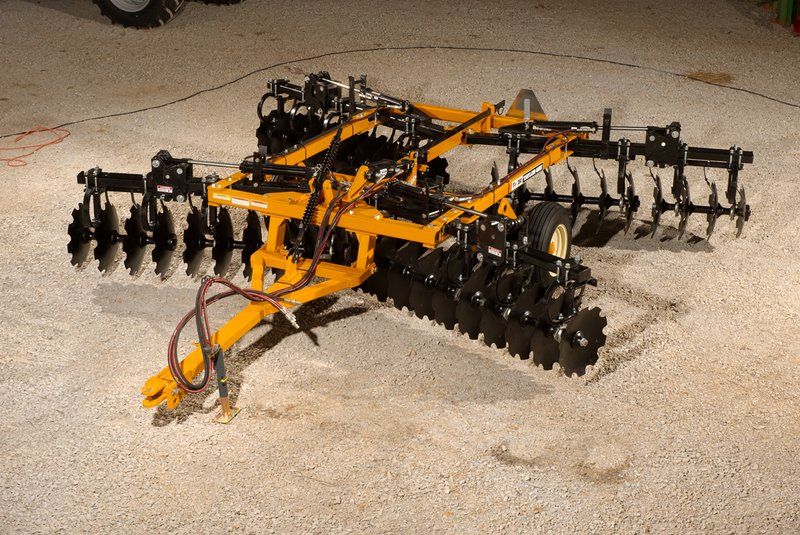

Taylor Way 350 Large
Browse All Taylor Way or Disc Models
Contents:
Dimensions
| Transport Width | 14.83 ft in (4520.19 mm) |
| Working Width Spacing #1 Max | 16.33 ft in (4977.39 mm) |
| Working Width Spacing #1 Min | 12.83 ft in (3910.59 mm) |
Disc System
| Spacing #1 | 7.5 in (190.5 mm) |
| Spacing #2 | 9 in (228.6 mm) |
| Blade Diameter | 22 in (558.8 mm) |
| Weight Per Blade Spacing #1 | 100 lb (45.4 kg) |
| Weight Per Blade Spacing #2 | 100 lb (45.4 kg) |
Gangs
| Front Disk Angle | 15 degrees |
| Rear Disk Angle | 21 degrees |
| Scrapers | Heat Treated High Carbon Steel |
