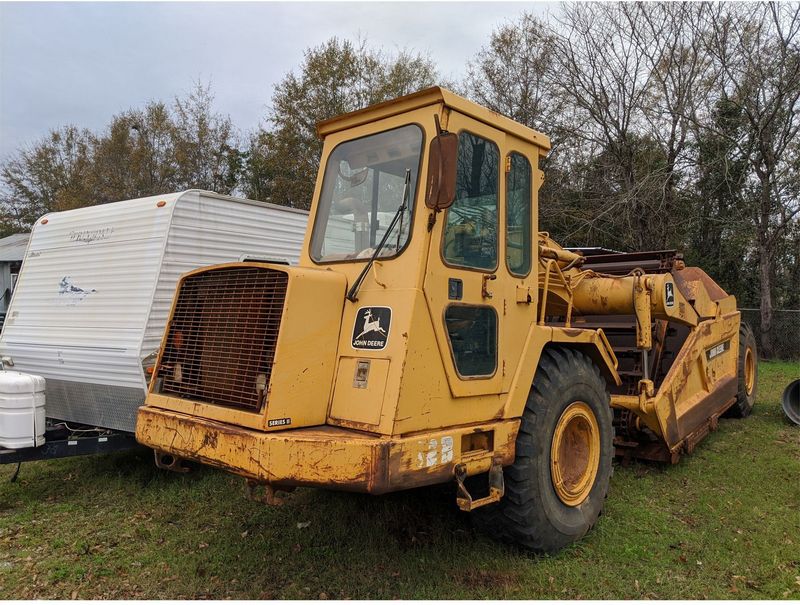

John Deere 762B Series II
Browse All John Deere or Elevating Motor Scraper Models
Contents:
Dimensions
| Overall Length | 33.01 ft in (10060 mm) |
| Overall Width | 8.01 ft in (2440 mm) |
| Overall Height | 9.26 ft in (2820 mm) |
| Wheelbase | 20.38 ft in (6210 mm) |
| Tractor Ground Clearance | 1.88 ft in (570 mm) |
| Height To Top Of Suspended Cab | 9.81 ft in (2990 mm) |
Tractor Engine
| Make | John Deere |
| Model | 6081AT001 |
| Gross Power | 190 hp (141.7 kw) |
| Net Power | 180 hp (134.3 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 496 cu in (8.2 L) |
| Aspiration | turbocharged and aftercooled |
Operational
| Fuel Capacity | 87 gal (329 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Engine Oil Capacity | 7.6 gal (28.5 L) |
| Transmission Fluid Capacity | 13 gal (49 L) |
| Differential Fluid Capacity | 8.3 gal (31.2 L) |
| Hydraulic System Fluid Capacity | 22 gal (83 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 23.5-25 |
Transmission
| Transmission Type | planetary |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed Forward | 25.5 mph (40.9 km/h) |
| Max Speed Reverse | 4.5 mph (7.2 km/h) |
Weights
| Total Operating - Empty | 35600 lb (16147.9 kg) |
| Front Axle - Empty | 22900 % |
| Rear Axle - Empty | 12700 % |
| Total Operating - Loaded | 63200 lb (28667.1 kg) |
| Front Axel - Loaded | 32200 lb (14605.7 kg) |
| Rear Axle - Loaded | 31000 % |
Bowl
| Heaped Capacity | 11.6 yd3 (8.8 m3) |
| Max Depth Of Cut | 7.1 in (180 mm) |
| Width Of Cut | 7.6 ft in (2290 mm) |
Elevator
| Length Of Flights | 5.6 ft in (1700 mm) |
| Number Of Flights | 18 |
| Max Working Speed | 207 ft/min (63.1 m/min) |
