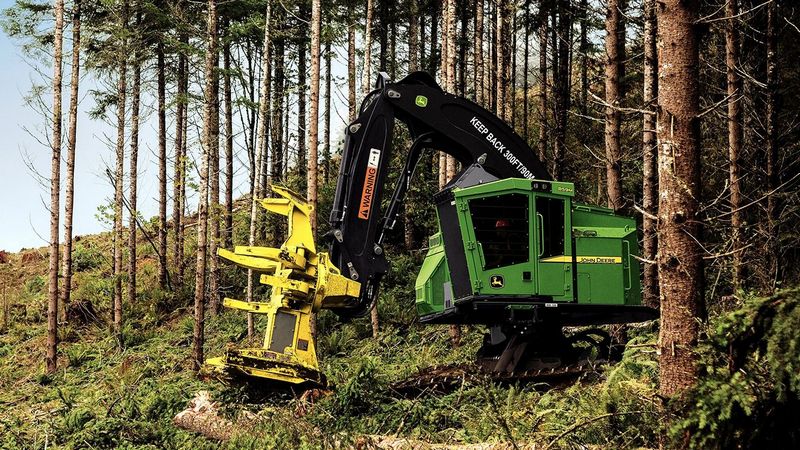

John Deere 859M
Browse All John Deere or Feller Buncher Models
Contents:
Dimensions
| Overall Width | 10.83 ft in (3300 mm) |
| Length Of Track On Ground | 12.7 ft in (3870.96 mm) |
| Track Gauge | 8.93 ft in (2720 mm) |
| Ground Clearance | 29 in (736.6 mm) |
| Tail Swing Radius | 6.37 ft in (1940 mm) |
| Height Over Cab | 12.87 ft in (3920 mm) |
| Super Structure Width | 10.34 ft in (3150 mm) |
| Tail Overhang - Over Side | 0.96 ft in (290 mm) |
| Carrier/Base Length | 16.08 ft in (4.91 m) |
Driveline
| Engine Model | PowerTech PSS 9.0L |
| Engine Manufacturer | John Deere |
| Engine Output | 285.7 hp (213 kw) |
| Engine Torque | 936.8 lb ft (1270 Nm) |
| Rated Speed | 2000 rpm |
| Carrier Rollers - Each Side | 2 |
| Track Rollers - Each Side | 9 |
| Track Shoe Width | 23.7 in (600 mm) |
Capacities
| Fuel Tank - Diesel | 229.9 gal (870 L) |
| Hydraulic Tank | 32.3 gal (122 L) |
| Alternator Output | 100 amps |
Performance
| Travel Speed | 2.3 mph (3.6 km/h) |
| Tractive Force | 83853.8 lb (373 kN) |
| Lift Capacity At Max - Reach | 12213.7 lb (5540 kg) |
| Pump Flow | 130.6 gal/min (494 L/min) |
| Pump Type | Var. axial-piston |
| Reference Harvesting Head | FS22B |
| Felling Diameter | 22.1 in (559 mm) |
| Reference Head Saw Type | Disc |
| Reference Head Type | Felling |
| Cutting Radius - Maximum | 27.9 ft in (8490 mm) |
| Cutting Radius - Minimum | 12.6 ft in (3830 mm) |
| Cutting Swath Horizontal | 15.3 ft in (4660 mm) |
Transmission
| System Voltage | 24 V |
Weights
| Operating Weight | 79124 lb (35890 kg) |
Upperstructure Leveling
| Front | 26 degrees |
| Rear | 7 degrees |
| Side | 14 degrees |
