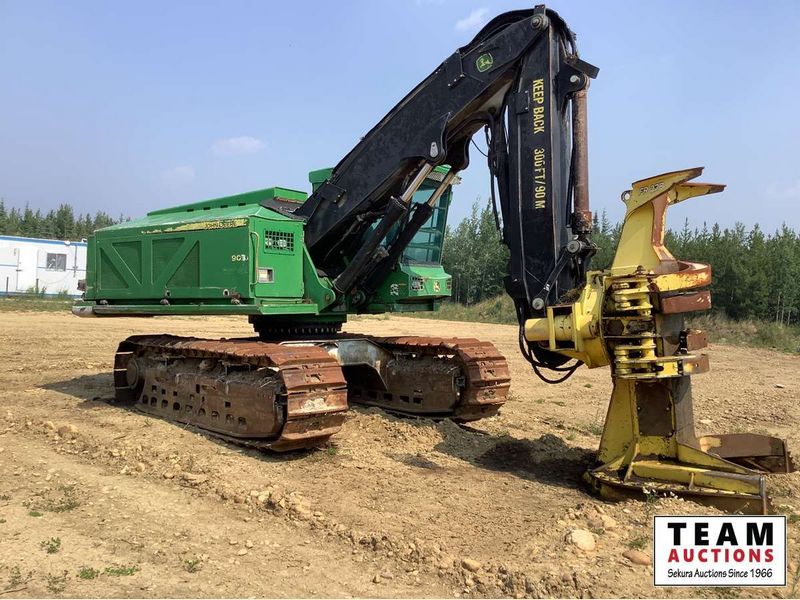

John Deere 903J
Browse All John Deere or Feller Buncher Models
Contents:
Boom
| Min Cut Radius | 16.41 ft in (5000 mm) |
| Max Cut Radius | 27.56 ft in (8400 mm) |
| Bare Pin Lift At Max Reach | 14175.73 lb (6430 kg) |
Dimensions
| Overall Width | 10.41 ft in (3170 mm) |
| Height To Top Of Cab | 12.67 ft in (3860 mm) |
| Length Of Track On Ground | 11.88 ft in (3620 mm) |
| Ground Clearance | 2.46 in (749 mm) |
| Tail Swing Radius | 9.85 ft in (3000 mm) |
| Max Reach | 27.56 ft in (8400 mm) |
Undercarriage
| Track Gauge | 8.4 ft in (2560 mm) |
| Shoe Size | 24 in (609.6 mm) |
| Tractive Effort | 74300 lb (33701.92 kg) |
| Number Of Track Rollers Per Side | 9 |
| Track Pitch | 8.51 in (216 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6081H |
| Gross Power | 294 hp (219.3 kw) |
| Power Measured @ | 1900 rpm |
| Torque Measured @ | 1500 rpm |
| Net Torque | 885 lb ft (1199.9 Nm) |
| Displacement | 492 cu in (8.1 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight W/O Attachment | 63340 lb (28730.6 kg) |
| Fuel Capacity | 295 gal (1116.7 L) |
| Cooling System Fluid Capacity | 11 gal (41.7 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Hydraulic System Fluid Capacity | 82.2 gal (311 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Max Speed | 2.5 mph (4.1 km/h) |
| Ground Pressure | 9.3 psi (64.1 kPa) |
