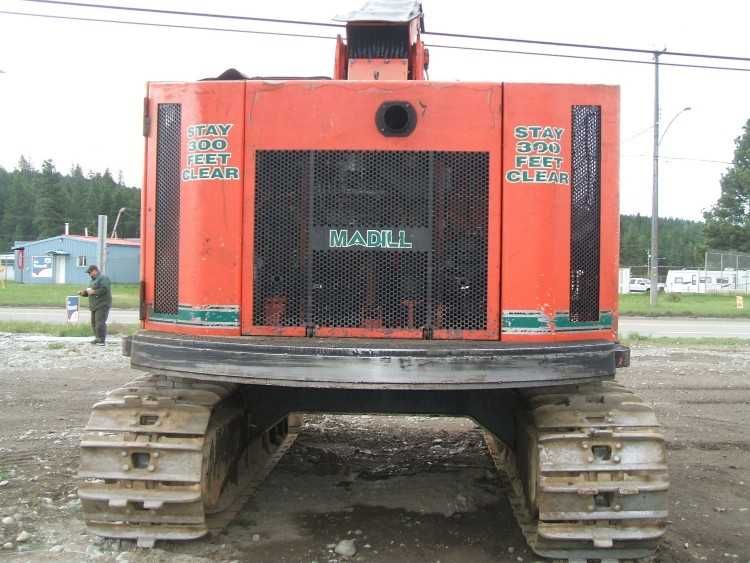

Madill 1250
Browse All Madill or Feller Buncher Models
Contents:
Dimensions
| Overall Width | 10.83 ft in (3300.99 mm) |
| Height To Top Of Cab | 11.83 ft in (3605.79 mm) |
| Ground Clearance | 2.33 in (710.19 mm) |
| Tail Swing Radius | 7 ft in (2133.6 mm) |
| Max Reach | 27.67 ft in (8433.82 mm) |
Undercarriage
| Shoe Size | 28 in (711.2 mm) |
| Number Of Track Rollers Per Side | 8 Berco excavator roller per side |
| Tractive Effort | 70800 lb (32114.35 kg) |
Engine
| Engine Make | 2353 |
| Engine Model | 6HK1X |
| Gross Power | 285 hp (212.6 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 476 cu in (7.8 L) |
Operational
| Fuel Capacity | 220 gal (832.8 L) |
| Engine Oil Capacity | 60 gal (227.2 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 90 amps |
| Max Speed | 3.2 mph (5.2 km/h) |
| Tire Size | Tracks- 10'10" wide,14' 7" Long |
| Ground Pressure | 6.9 psi (0.4 kPa) |
Transmission
| Number Of Forward Gears | 2 |
