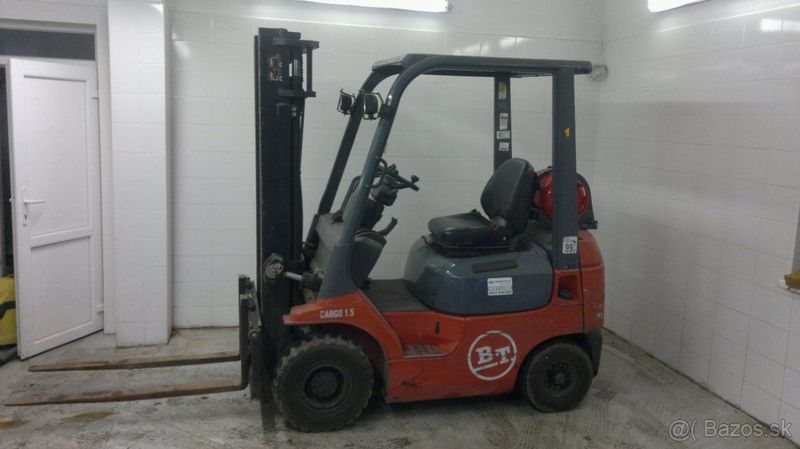

BT GT15
Contents:
Dimensions
| Length To Fork Face | 7.53 ft in (2295 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1995 mm) |
| Wheelbase | 4.88 ft in (1485 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Height To Top Of Overhead Guard | 6.83 ft in (2080 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 6.53 ft in (1990 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 11 degrees |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Capacity | 3306.94 lb (1500 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 133.86 ft/min (40.8 m/min) |
Engine
| Engine Make | 2304 |
| Engine Model | 4Y |
| Power | 51 hp (38 kw) |
| Torque | 118.1 lb ft (160 Nm) |
| Power Measured @ | 2570 rpm |
| Displacement | 136.6 cu in (2.3 L) |
| Torque Measured @ | 2100 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 5357.3 lb (2430 kg) |
| Tire Type | pneumatic, front 6.50-10.10PR rear 5.00-8-8PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.9 mph (19 km/h) |
