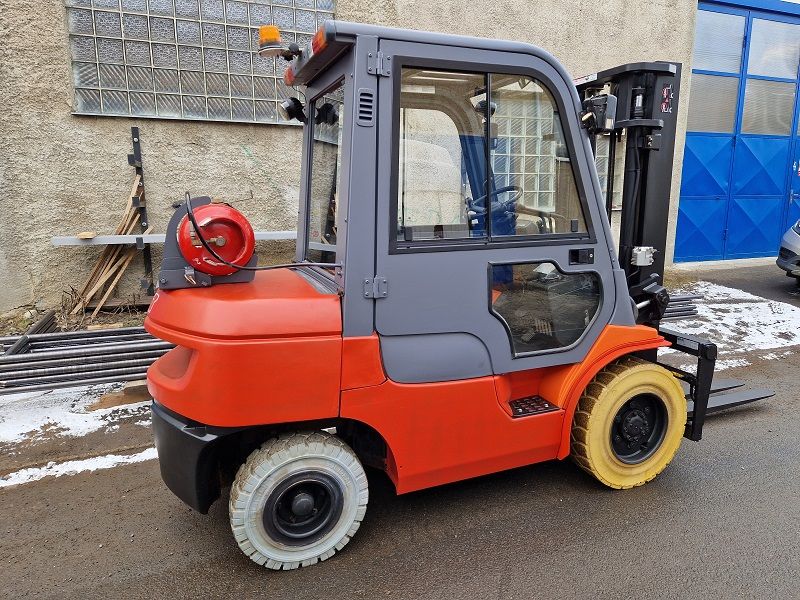

BT GT30
Contents:
Dimensions
| Length To Fork Face | 9.19 ft in (2800 mm) |
| Overall Width | 4.07 ft in (1240 mm) |
| Overall Height - Mast Lowered | 6.62 ft in (2015 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 5.12 in (130 mm) |
| Height To Top Of Overhead Guard | 7.12 ft in (2170 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 7.98 ft in (2430 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 11 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 108.27 ft/min (33 m/min) |
Engine
| Engine Make | 2304 |
| Engine Model | 4Y |
| Power | 59.1 hp (44 kw) |
| Torque | 118.1 lb ft (160 Nm) |
| Power Measured @ | 2570 rpm |
| Displacement | 136.6 cu in (2.3 L) |
| Torque Measured @ | 2200 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 9325.6 lb (4230 kg) |
| Tire Type | pneumatic front 28x9-15-12PR rear 6.50-10-10PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.9 mph (19 km/h) |
