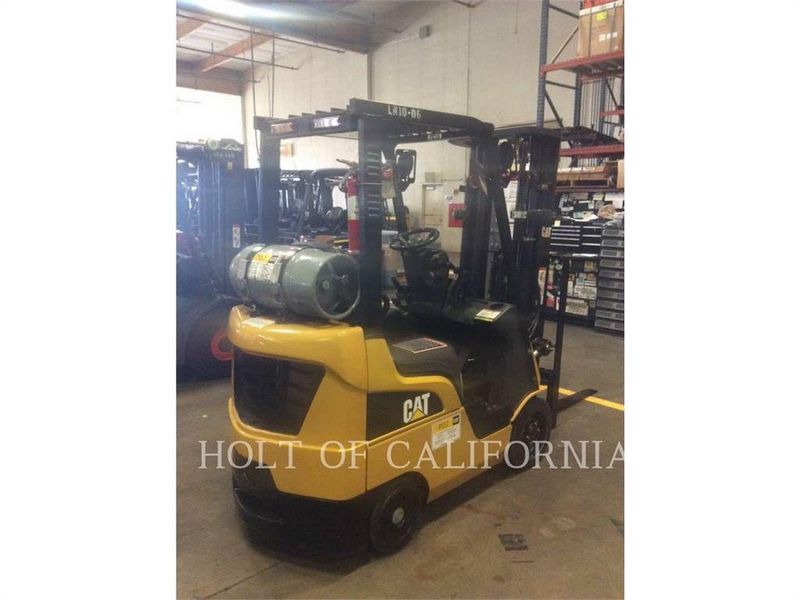

Caterpillar C3500
Browse All Caterpillar or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 6.94 ft in (2115 mm) |
| Overall Width | 3.19 ft in (970 mm) |
| Overall Height - Mast Lowered | 6.91 ft in (2105 mm) |
| Wheelbase | 3.91 ft in (1190 mm) |
| Ground Clearance | 2.96 in (75 mm) |
| Height To Top Of Overhead Guard | 6.76 ft in (2060 mm) |
| Max Fork Height | 10.91 ft in (3325 mm) |
| Turning Radius | 5.94 ft in (1810 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 32.29 in (820 mm) |
| Lower Speed | 99 ft/min (30.18 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 3500 lb (1587.58 kg) |
| Lift Speed | 125 ft/min (38.1 m/min) |
Engine
| Engine Model | K21 |
| Power | 50 hp (37.3 kw) |
| Torque | 111 lb ft (150.5 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 128.2 cu in (2.1 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | gas |
Operational
| Operating Weight | 6449 lb (2925.3 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.2 mph (16.5 km/h) |
