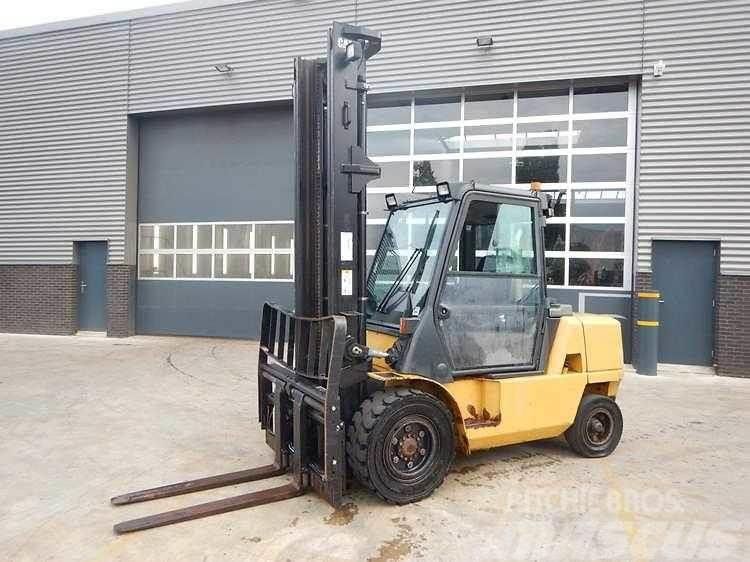

Caterpillar DP45K
Browse All Caterpillar or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 10.42 ft in (3175 mm) |
| Overall Width | 4.79 ft in (1460 mm) |
| Overall Height - Mast Lowered | 7.88 ft in (2400 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Ground Clearance | 5.91 in (150 mm) |
| Height To Top Of Overhead Guard | 7.39 ft in (2250 mm) |
| Max Fork Height | 11 ft in (3350 mm) |
| Turning Radius | 9.26 ft in (2820 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 46.62 in (1184 mm) |
| Lower Speed | 5.35 ft/min (1.63 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 9920.81 lb (4500 kg) |
| Lift Speed | 4.86 ft/min (1.48 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | S6S |
| Power | 84 hp (62.7 kw) |
| Torque | 184 lb ft (249.5 Nm) |
| Power Measured @ | 2450 rpm |
| Displacement | 305 cu in (5 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 14727 lb (6680.1 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.1 mph (19.5 km/h) |
