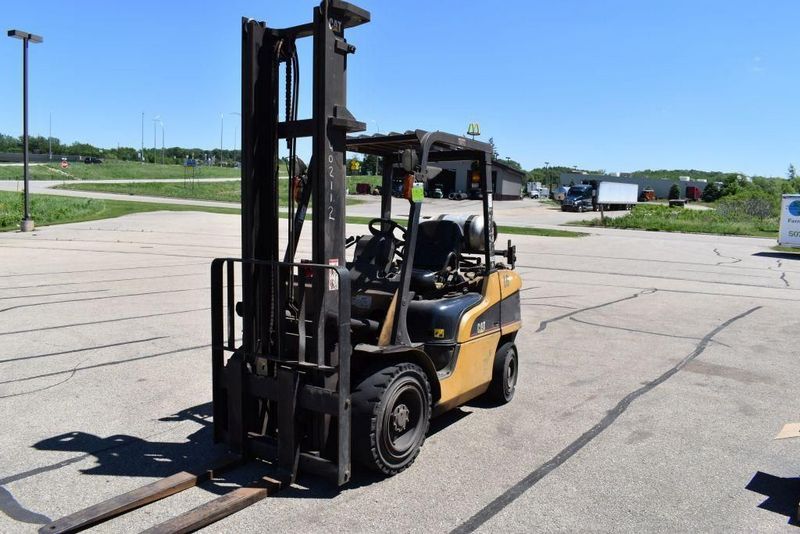

Caterpillar P6500D
Browse All Caterpillar or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 9.03 ft in (2750 mm) |
| Overall Width | 4.19 ft in (1275 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 5.36 in (136 mm) |
| Height To Top Of Overhead Guard | 6.98 ft in (2125 mm) |
| Max Fork Height | 11 ft in (3350 mm) |
| Turning Radius | 7.98 ft in (2430 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 39.38 in (1000 mm) |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 7275.26 lb (3300 kg) |
| Lift Speed | 100 ft/min (30.48 m/min) |
Engine
| Engine Model | S4S |
| Power | 59 hp (44 kw) |
| Torque | 135 lb ft (183.1 Nm) |
| Power Measured @ | 2300 rpm |
| Displacement | 203 cu in (3.4 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 10300 lb (4672.1 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.5 mph (18.6 km/h) |
