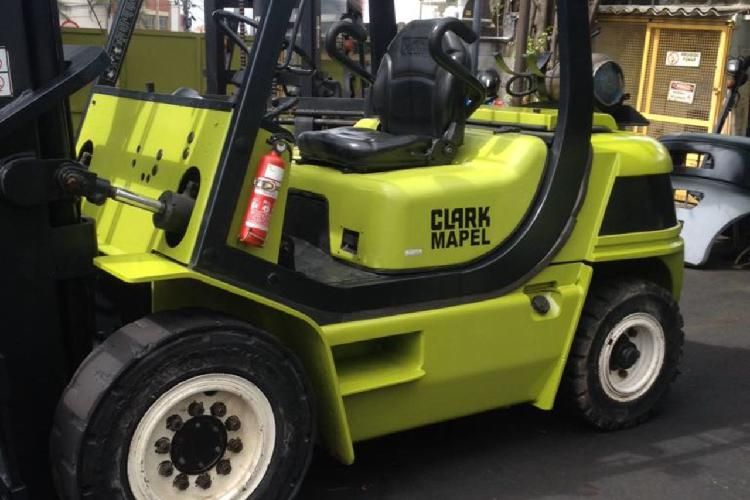

Clark Michigan CMP45 LPG 2X
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 10.27 ft in (3130 mm) |
| Overall Width | 5.09 ft in (1550 mm) |
| Overall Height - Mast Lowered | 7.9 ft in (2405 mm) |
| Wheelbase | 6.4 ft in (1950 mm) |
| Ground Clearance | 6.8 in (172.72 mm) |
| Height To Top Of Overhead Guard | 7.31 ft in (2227 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Right Angle Stack | 11.29 ft in (3440 mm) |
| Turning Radius | 9.42 ft in (2870 mm) |
Mast
| Mast Tip Forward | 8 degrees |
| Mast Tip Rear | 10 degrees |
| Number Of Mast Sections | 3 |
| Lower Speed | 93 ft/min (28.35 m/min) |
| Max Fork Spread | 54.02 in (1372 mm) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 9000 lb (4082.34 kg) |
| Lift Speed | 83 ft/min (25.3 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Engine Model | Vortec 4300LT |
| Power | 93 hp (69.4 kw) |
| Torque | 235 lb ft (318.7 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262 cu in (4.3 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 14563 lb (6605.7 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.9 mph (22.3 km/h) |
