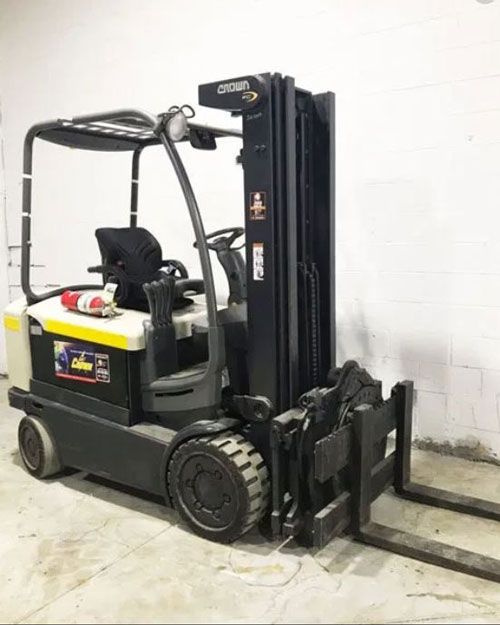

Crown FC 4020-60
Contents:
Dimensions
| Length To Fork Face | 7.31 ft in (2227.57 mm) |
| Overall Width | 3.75 ft in (1143 mm) |
| Overall Height - Mast Lowered | 6.92 ft in (2109.22 mm) |
| Wheelbase | 4.56 ft in (1389.37 mm) |
| Ground Clearance | 3 in (76.2 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185.42 mm) |
| Max Fork Height | 15 ft in (4572 mm) |
| Right Angle Stack | 7.86 ft in (2395.21 mm) |
| Turning Radius | 6.52 ft in (1986.26 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Max Fork Spread | 36 in (914.4 mm) |
| Lower Speed | 84 ft/min (25.61 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Lift Speed | 76 ft/min (23.17 m/min) |
Engine
| Fuel Type | Electric 36/48 volts |
Operational
| Operating Weight | 10487 lb (4756.9 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.8 mph (14.2 km/h) |
