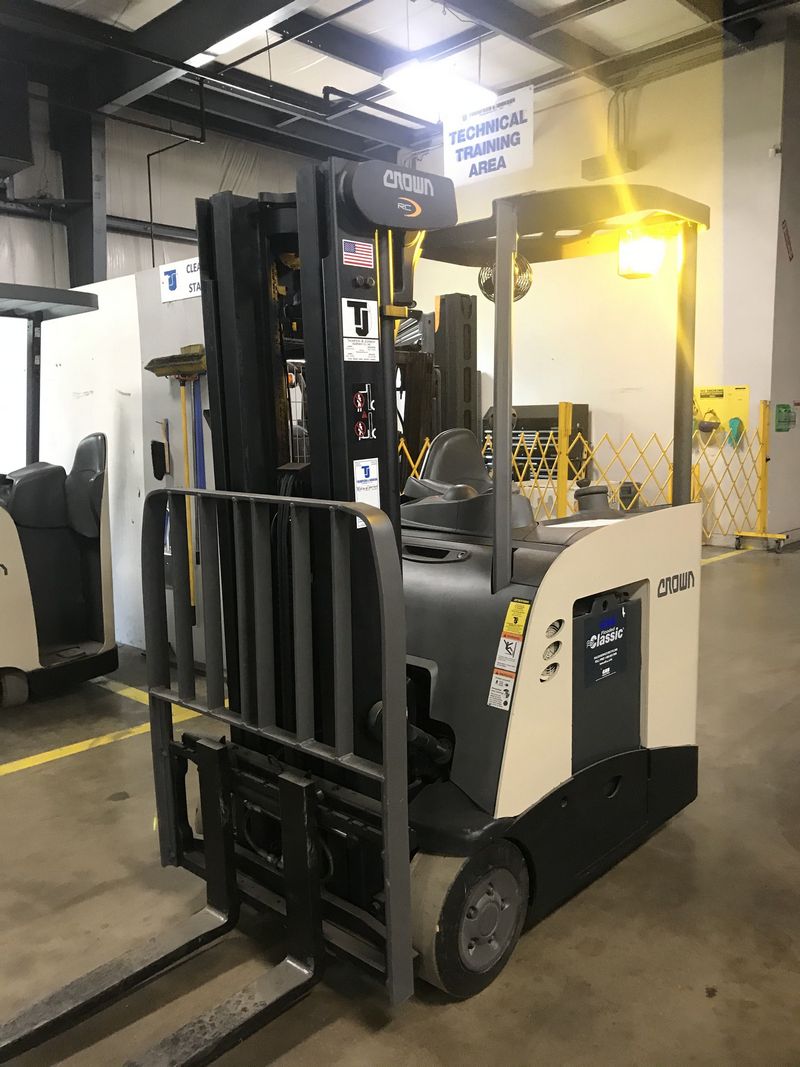

Crown RC 5530/35-30
Contents:
Dimensions
| Length To Fork Face | 5.63 ft in (1714.5 mm) |
| Overall Width | 3.5 ft in (1066.8 mm) |
| Overall Height - Mast Lowered | 6.92 ft in (2108.22 mm) |
| Wheelbase | 3.94 ft in (1198.87 mm) |
| Ground Clearance | 3 in (76.2 mm) |
| Height To Top Of Overhead Guard | 7.34 ft in (2235.19 mm) |
| Max Fork Height | 15.84 ft in (4825.99 mm) |
| Turning Radius | 4.69 ft in (1427.47 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Lift Speed | 65 ft/min (19.82 m/min) |
| Max Fork Spread | 33 in (838.2 mm) |
| Lower Speed | 90 ft/min (27.44 m/min) |
| Load Center | 24 in (609.6 mm) |
| Number Of Mast Sections | 3 |
| Load Capacity | 3000 lb (1360.78 kg) |
Engine
| Fuel Type | Electric 36V |
Operational
| Operating Weight | 8579 lb (3891.4 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.2 mph (11.6 km/h) |
