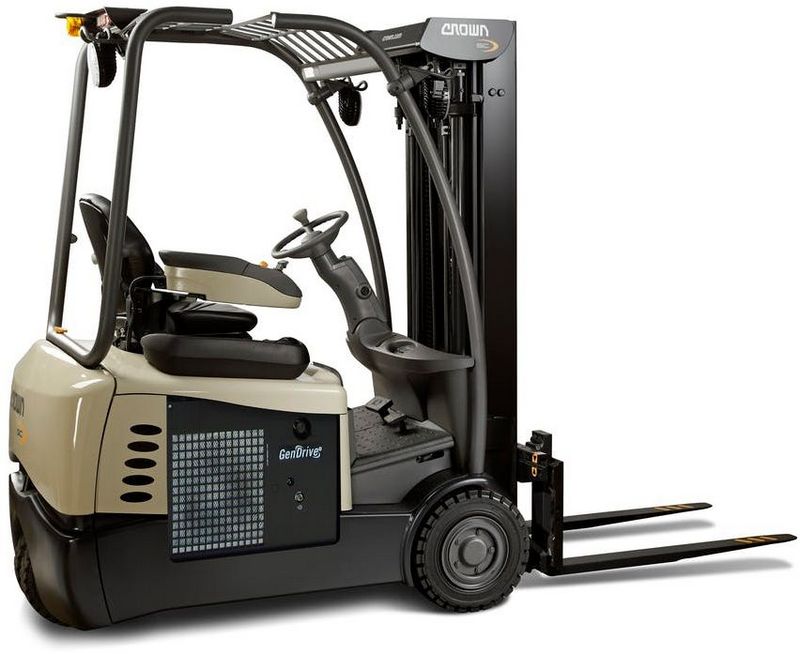

Crown SC 4010-30
Contents:
Dimensions
| Length To Fork Face | 5.66 ft in (1724.65 mm) |
| Overall Width | 3.59 ft in (1092.19 mm) |
| Overall Height - Mast Lowered | 6.92 ft in (2108.18 mm) |
| Wheelbase | 3.8 ft in (1158.24 mm) |
| Ground Clearance | 3 in (76.2 mm) |
| Height To Top Of Overhead Guard | 6.55 ft in (1993.88 mm) |
| Max Fork Height | 15.84 ft in (4825.99 mm) |
| Turning Radius | 4.47 ft in (1361.42 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Max Fork Spread | 33 in (838.2 mm) |
| Lower Speed | 90 ft/min (27.44 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3000 lb (1360.78 kg) |
| Lift Speed | 90 ft/min (27.44 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 7624 lb (3458.2 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8 mph (12.9 km/h) |
