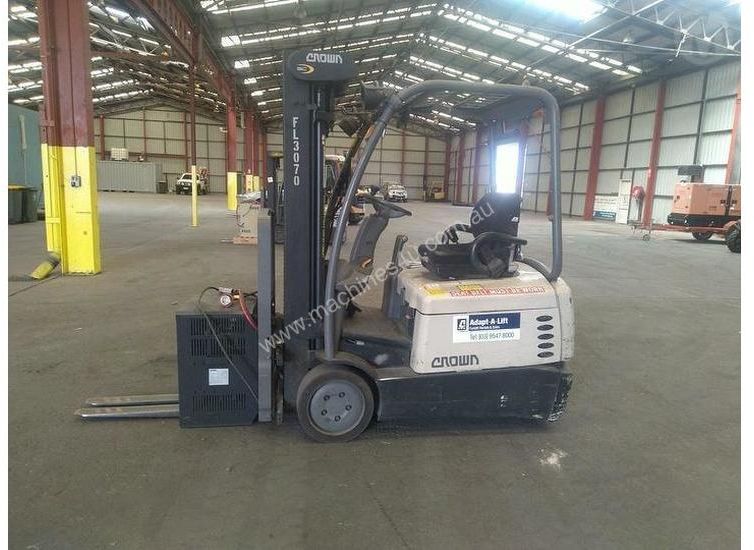

Crown SC 4520-35
Contents:
Dimensions
| Length To Fork Face | 6.05 ft in (1844.04 mm) |
| Overall Width | 3.36 ft in (1023.61 mm) |
| Overall Height - Mast Lowered | 6.92 ft in (2108.22 mm) |
| Wheelbase | 4.18 ft in (1272.54 mm) |
| Ground Clearance | 3 in (76.2 mm) |
| Height To Top Of Overhead Guard | 6.55 ft in (1993.92 mm) |
| Max Fork Height | 15.84 ft in (4825.99 mm) |
| Turning Radius | 4.85 ft in (1475.76 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Lift Speed | 60 ft/min (18.29 m/min) |
| Max Fork Spread | 33 in (838.2 mm) |
| Lower Speed | 90 ft/min (27.44 m/min) |
| Load Center | 24 in (609.6 mm) |
| Number Of Mast Sections | 3 |
| Load Capacity | 3500 lb (1587.58 kg) |
Engine
| Fuel Type | Electric V36 |
Operational
| Operating Weight | 8466 lb (3840.2 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.5 mph (12.1 km/h) |
