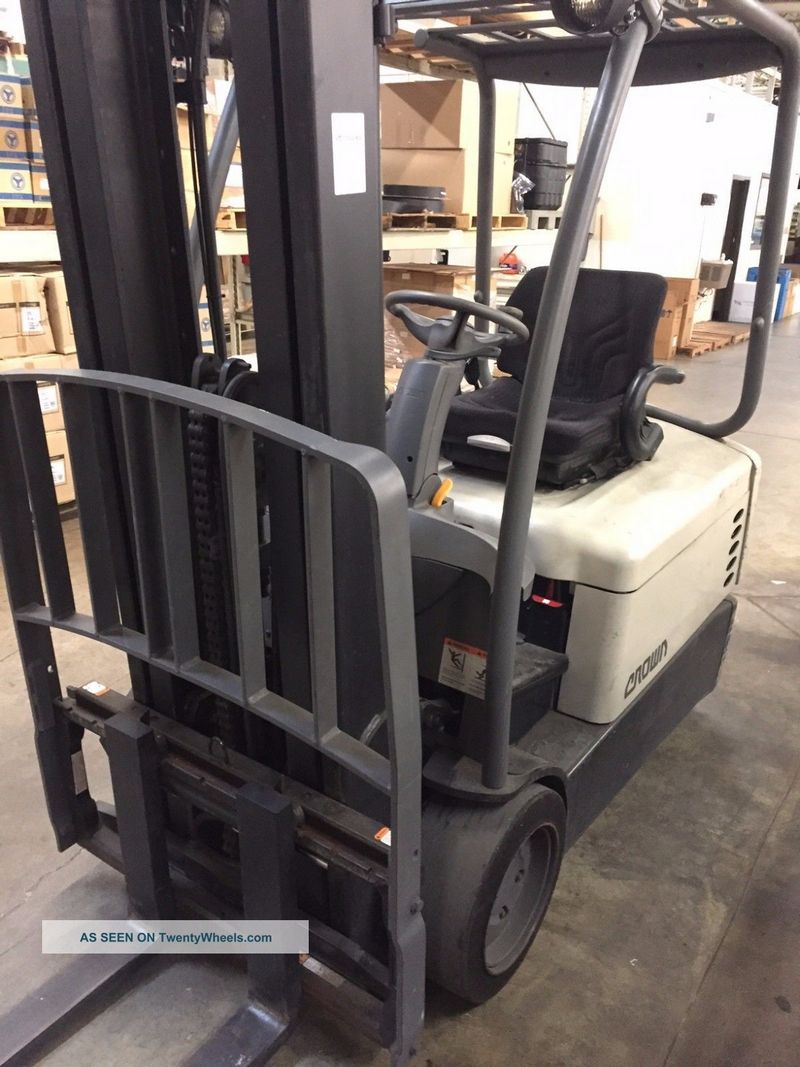

Crown SC 4540-40
Contents:
Dimensions
| Length To Fork Face | 6.44 ft in (1960.87 mm) |
| Overall Width | 3.53 ft in (1074.42 mm) |
| Overall Height - Mast Lowered | 6.92 ft in (2108.22 mm) |
| Wheelbase | 4.56 ft in (1389.37 mm) |
| Ground Clearance | 3 in (76.2 mm) |
| Height To Top Of Overhead Guard | 6.55 ft in (1993.92 mm) |
| Max Fork Height | 15.84 ft in (4825.99 mm) |
| Turning Radius | 5.23 ft in (1592.58 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Lift Speed | 58 ft/min (17.68 m/min) |
| Max Fork Spread | 36 in (914.4 mm) |
| Lower Speed | 90 ft/min (27.44 m/min) |
| Load Center | 24 in (609.6 mm) |
| Number Of Mast Sections | 3 |
| Load Capacity | 4000 lb (1814.37 kg) |
Engine
| Fuel Type | Electric 36V |
Operational
| Operating Weight | 8860 lb (4018.9 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.2 mph (11.6 km/h) |
