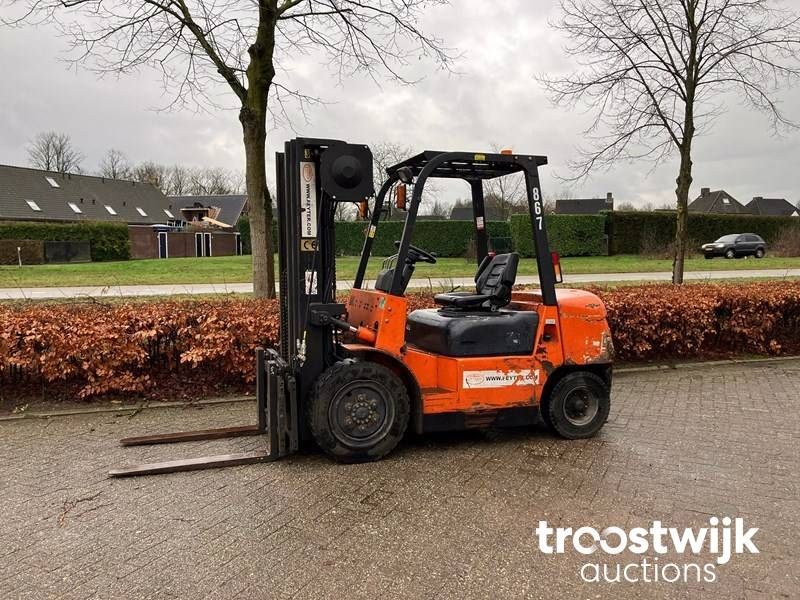

Dalian CPCD30FA
Contents:
Dimensions
| Length To Fork Face | 8.85 ft in (2695 mm) |
| Overall Width | 4.02 ft in (1225 mm) |
| Overall Height - Mast Lowered | 6.83 ft in (2080 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 4.53 in (115 mm) |
| Height To Top Of Overhead Guard | 6.86 ft in (2090 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Right Angle Stack | 6.62 ft in (2015 mm) |
| Turning Radius | 7.96 ft in (2424 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 6613.87 lb (3000 kg) |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 80.71 ft/min (24.6 m/min) |
Engine
| Engine Make | 2353 |
| Engine Model | C240PKJ |
| Power | 46.4 hp (34.6 kw) |
| Torque | 101.2 lb ft (137.2 Nm) |
| Power Measured @ | 2650 rpm |
| Displacement | 144.6 cu in (2.4 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 9524 lb (4320 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.5 mph (20 km/h) |
