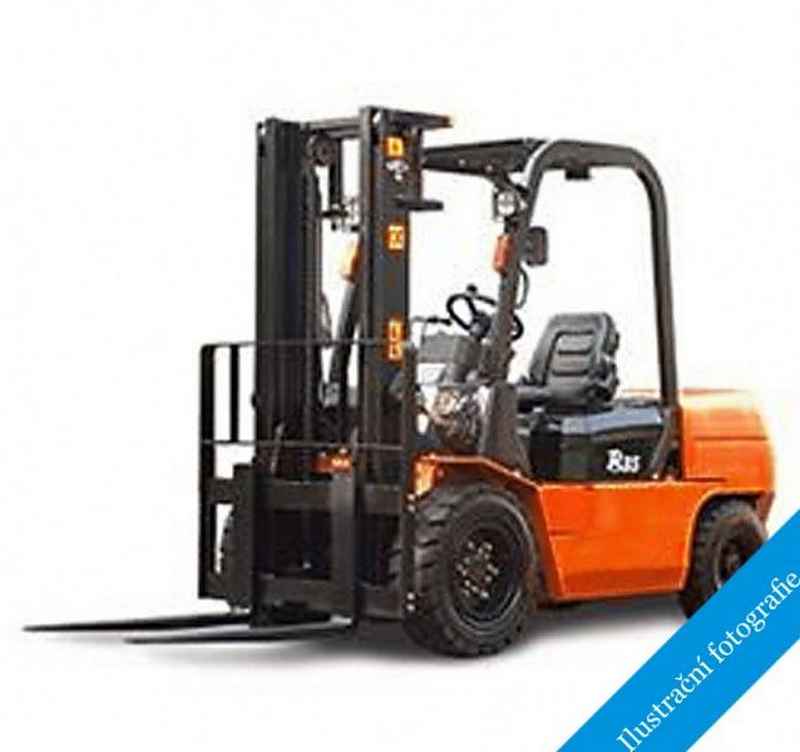

EP CPCD35N
Contents:
Dimensions
| Length To Fork Face | 9.19 ft in (2800 mm) |
| Overall Width | 4.02 ft in (1225 mm) |
| Overall Height - Mast Lowered | 7.09 ft in (2160 mm) |
| Wheelbase | 5.78 ft in (1760 mm) |
| Ground Clearance | 5.12 in (130 mm) |
| Height To Top Of Overhead Guard | 7.06 ft in (2150 mm) |
| Max Fork Height | 13.59 ft in (4140 mm) |
| Right Angle Stack | 9.52 ft in (2900 mm) |
| Turning Radius | 7.93 ft in (2415 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 7716.18 lb (3500 kg) |
| Lower Speed | _ - (30 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | _ - (21.6 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV94L |
| Power | 57.7 hp (43 kw) |
| Torque | 151.3 lb ft (205 Nm) |
| Power Measured @ | 2500 rpm |
| Displacement | 186.4 cu in (3.1 L) |
| Torque Measured @ | 1000 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 10042.1 lb (4555 kg) |
| Tire Type | front 28*9-15-12PR rear 6.50-10-10PR |
| Max Speed | 11.9 mph (19 km/h) |
