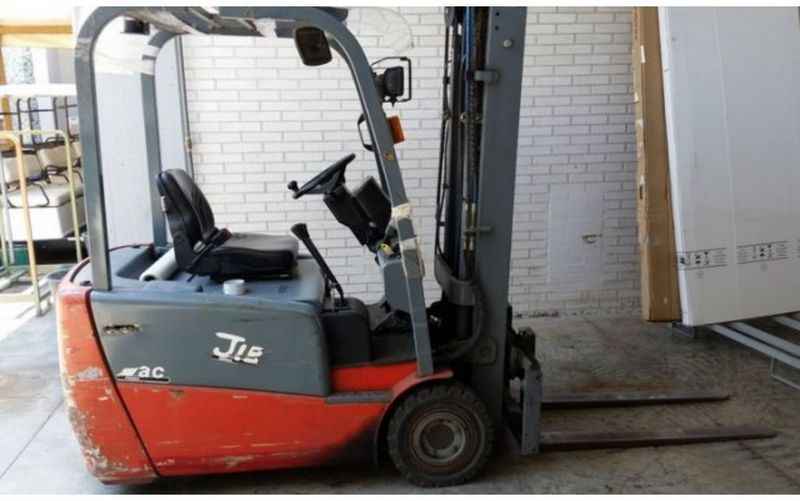

EP CPDS16JC1
Contents:
Dimensions
| Length To Fork Face | 6.24 ft in (1900 mm) |
| Overall Width | 3.48 ft in (1060 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1995 mm) |
| Wheelbase | 4.46 ft in (1358 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height To Top Of Overhead Guard | 6.44 ft in (1960 mm) |
| Max Fork Height | 12.95 ft in (3945 mm) |
| Right Angle Stack | 11.06 ft in (3370 mm) |
| Turning Radius | 5.09 ft in (1550 mm) |
Mast
| Mast Tip Forward | 6.5 degrees |
| Mast Tip Rear | 6.5 degrees |
| Load Capacity | 3527.4 lb (1600 kg) |
| Max Fork Spread | 39.38 in (1000 mm) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 55.12 ft/min (16.8 m/min) |
Engine
| Engine Make | 2366 |
| Power | 12.4 hp (9.2 kw) |
| Fuel Type | electric motor |
Operational
| Operating Weight | 6658 lb (3020 kg) |
| Tire Type | front 18x7-8 rear 15x4.5-8 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 8.7 mph (14 km/h) |
