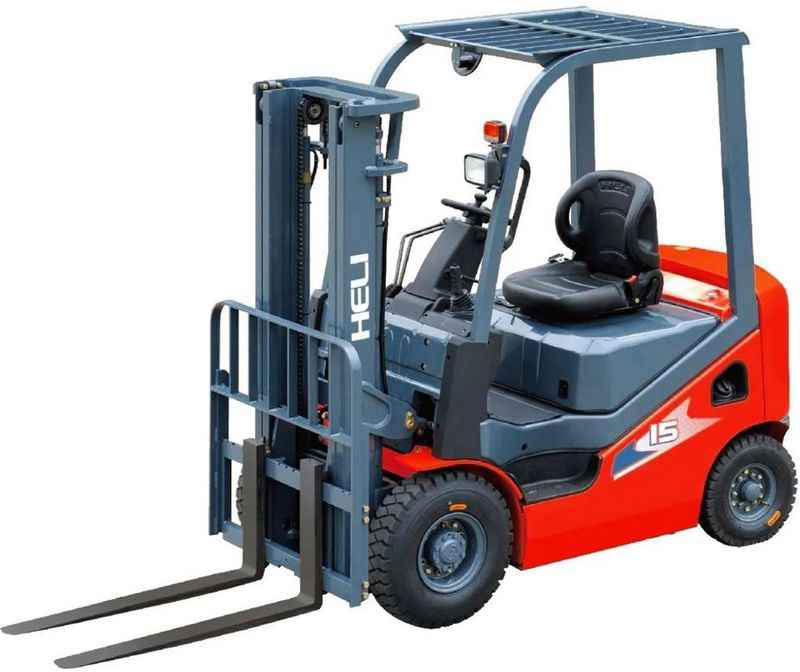

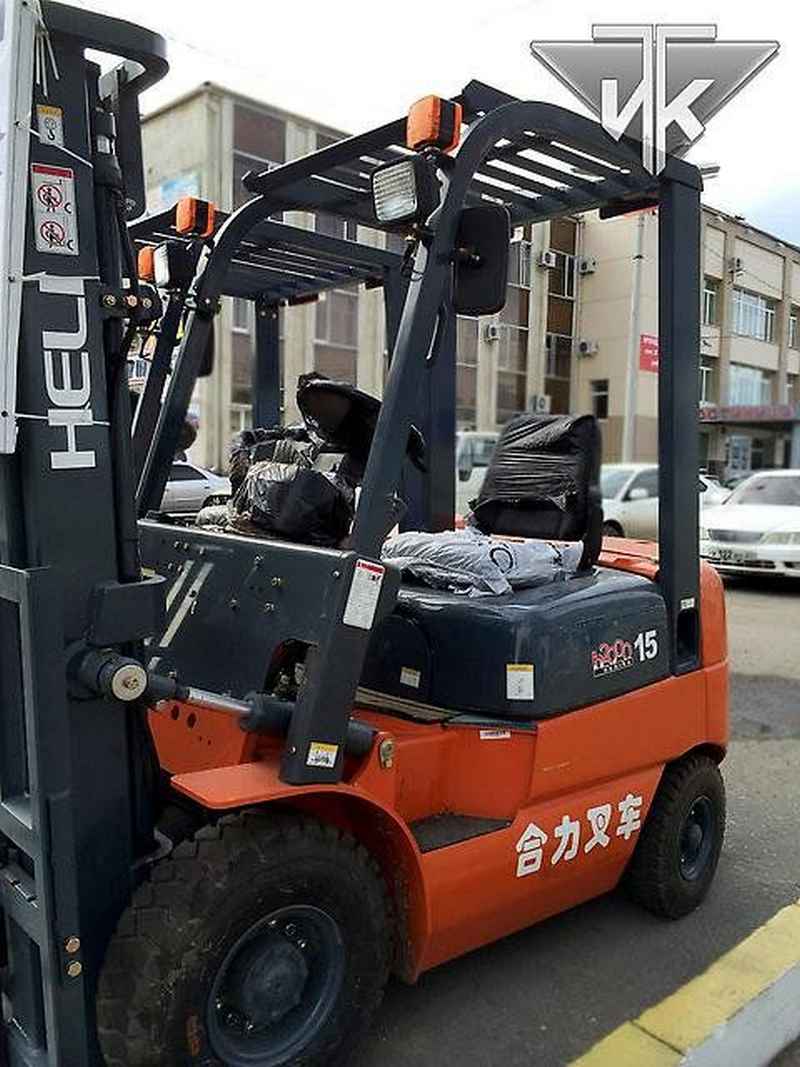

HeLi CPQD15
Contents:
Dimensions
| Length To Fork Face | 7.32 ft in (2231 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 6.55 ft in (1995 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.8 ft in (2070 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Right Angle Stack | 5.81 ft in (1770 mm) |
| Turning Radius | 6.42 ft in (1955 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 3306.94 lb (1500 kg) |
| Max Fork Spread | 37.41 in (950 mm) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 127.96 ft/min (39 m/min) |
Engine
| Engine Make | 2311 |
| Engine Model | H15KA |
| Power | 34.5 hp (25.7 kw) |
| Torque | 83.2 lb ft (112.8 Nm) |
| Power Measured @ | 2400 rpm |
| Torque Measured @ | 1600 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 5710 lb (2590 kg) |
| Tire Type | front 6.50-10-10PR rear 5.00-8-8PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.1 mph (14.5 km/h) |
