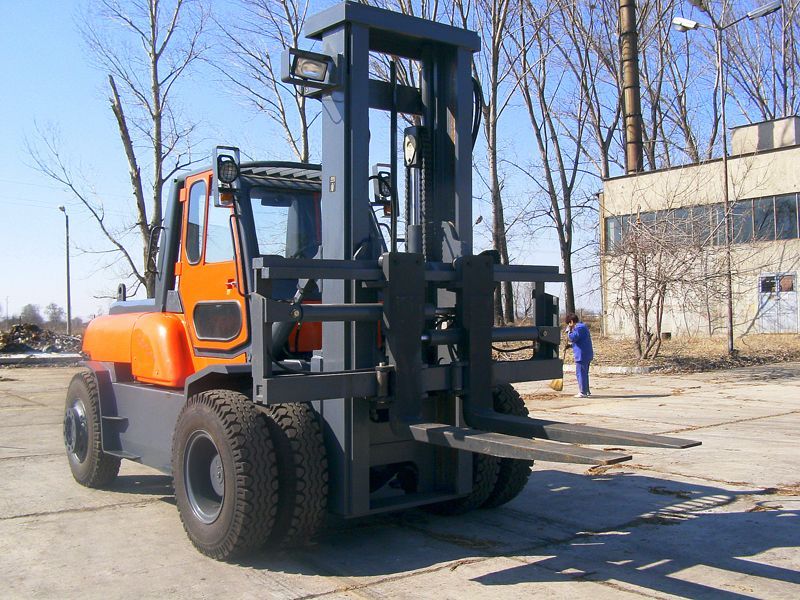

Hercu 70D
Contents:
Dimensions
| Length To Fork Face | 11.65 ft in (3550 mm) |
| Overall Width | 7.67 ft in (2337 mm) |
| Overall Height - Mast Lowered | 8.8 ft in (2680 mm) |
| Wheelbase | 7.22 ft in (2200 mm) |
| Ground Clearance | 7.88 in (200 mm) |
| Height To Top Of Overhead Guard | 7.58 ft in (2310 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 10.5 ft in (3200 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 59.06 ft/min (18 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 15432.36 lb (7000 kg) |
| Lift Speed | 68.9 ft/min (21 m/min) |
Engine
| Engine Make | 2388 |
| Engine Model | 8045 E |
| Power | 79.2 hp (59 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 244.1 cu in (4 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 20944 lb (9500 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.5 mph (20 km/h) |
