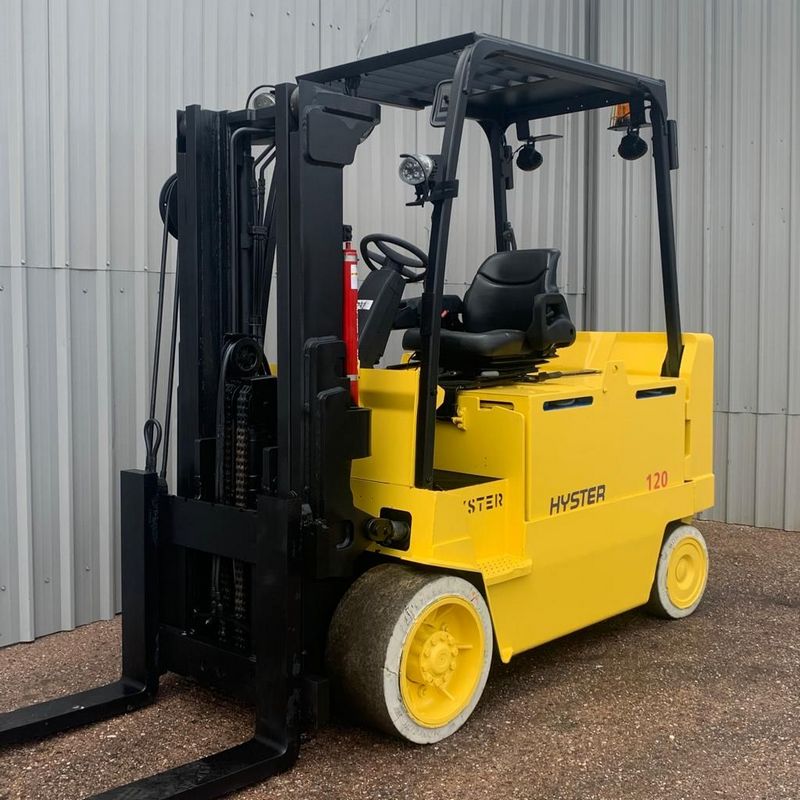

Hyster E120Z (48V)
Contents:
Dimensions
| Length To Fork Face | 8.9 ft in (2712 mm) |
| Overall Width | 4.34 ft in (1321 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2134 mm) |
| Wheelbase | 5.71 ft in (1740 mm) |
| Ground Clearance | 4.65 in (118 mm) |
| Height To Top Of Overhead Guard | 7.85 ft in (2390 mm) |
| Max Fork Height | 9.36 ft in (2850 mm) |
| Right Angle Stack | 13.41 ft in (4087 mm) |
| Turning Radius | 7.9 ft in (2405 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 73 ft/min (22.26 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 11001.07 lb (4990 kg) |
| Lift Speed | 89 ft/min (27.13 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 18847.4 lb (8549 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.4 mph (16.7 km/h) |
