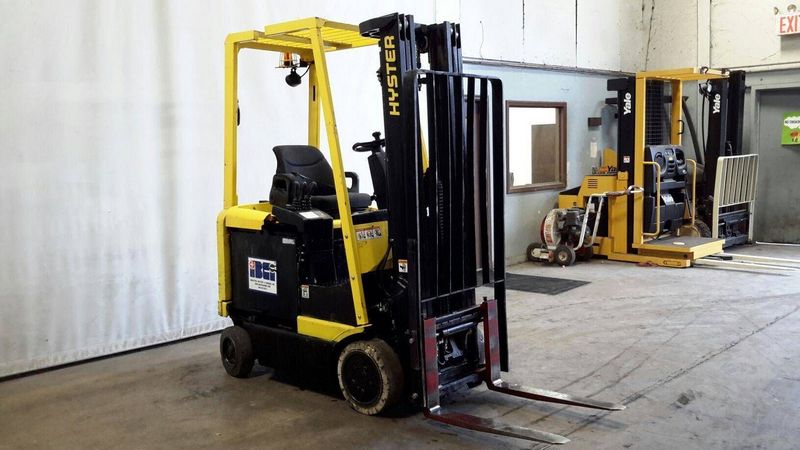

Hyster E30Z (48V)
Contents:
Dimensions
| Length To Fork Face | 6.27 ft in (1909 mm) |
| Overall Width | 3.11 ft in (945 mm) |
| Overall Height - Mast Lowered | 6.84 ft in (2083 mm) |
| Wheelbase | 4.01 ft in (1220 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height To Top Of Overhead Guard | 7.3 ft in (2224 mm) |
| Max Fork Height | 10.61 ft in (3232 mm) |
| Right Angle Stack | 9.08 ft in (2765 mm) |
| Turning Radius | 5.4 ft in (1643 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 93 ft/min (28.35 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 2998.29 lb (1360 kg) |
| Lift Speed | 134 ft/min (40.85 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 7035 lb (3191 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (17.9 km/h) |
