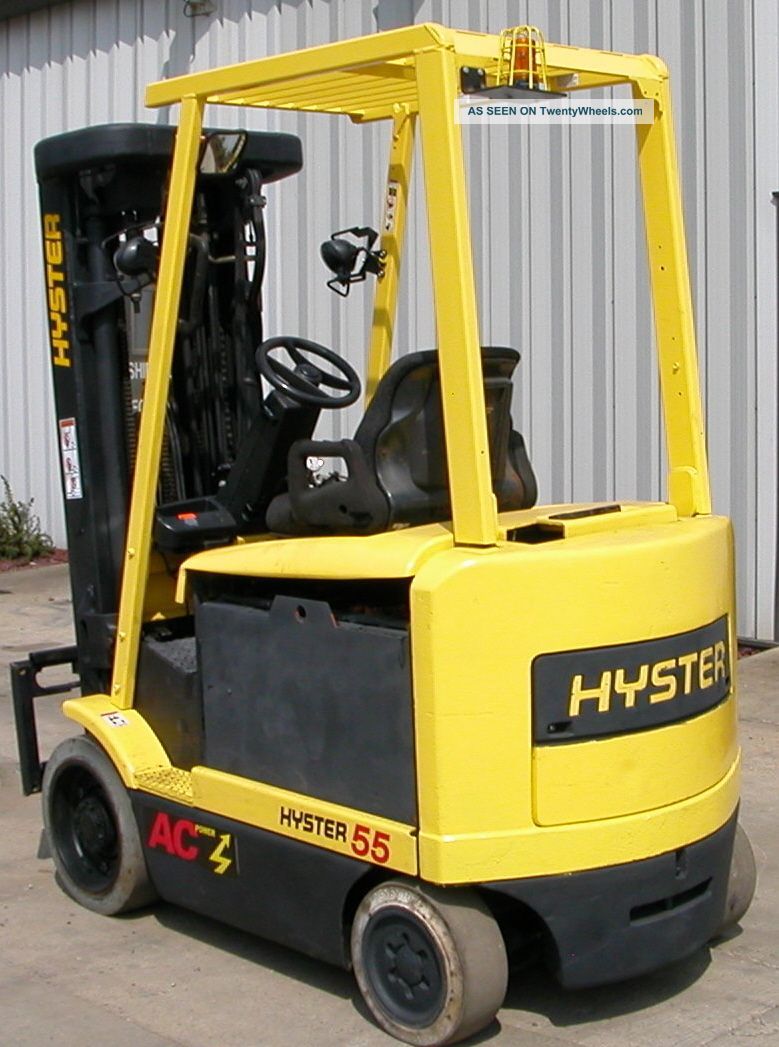

Hyster E55Z (48V)
Contents:
Dimensions
| Length To Fork Face | 6.9 ft in (2103 mm) |
| Overall Width | 3.51 ft in (1069 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2134 mm) |
| Wheelbase | 4.45 ft in (1356 mm) |
| Ground Clearance | 3.59 in (91 mm) |
| Height To Top Of Overhead Guard | 7.55 ft in (2299 mm) |
| Max Fork Height | 10.92 ft in (3327 mm) |
| Right Angle Stack | 11.34 ft in (3454 mm) |
| Turning Radius | 6.09 ft in (1856 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 8 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 100 ft/min (30.48 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 5500.54 lb (2495 kg) |
| Lift Speed | 123 ft/min (37.5 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 9224.2 lb (4184 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.3 mph (18.2 km/h) |
