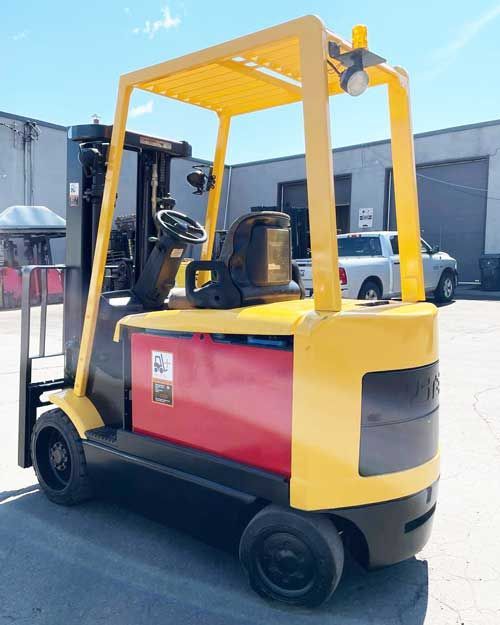

Hyster E65Z (48V)
Contents:
Dimensions
| Length To Fork Face | 7.61 ft in (2317 mm) |
| Overall Width | 3.63 ft in (1105 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2134 mm) |
| Wheelbase | 5 ft in (1524 mm) |
| Ground Clearance | 3.59 in (91 mm) |
| Height To Top Of Overhead Guard | 7.55 ft in (2299 mm) |
| Max Fork Height | 10.55 ft in (3213 mm) |
| Right Angle Stack | 12.06 ft in (3673 mm) |
| Turning Radius | 6.7 ft in (2041 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 8 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 90 ft/min (27.44 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 6499.23 lb (2948 kg) |
| Lift Speed | 116 ft/min (35.36 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 10573.4 lb (4796 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.4 mph (18.2 km/h) |
