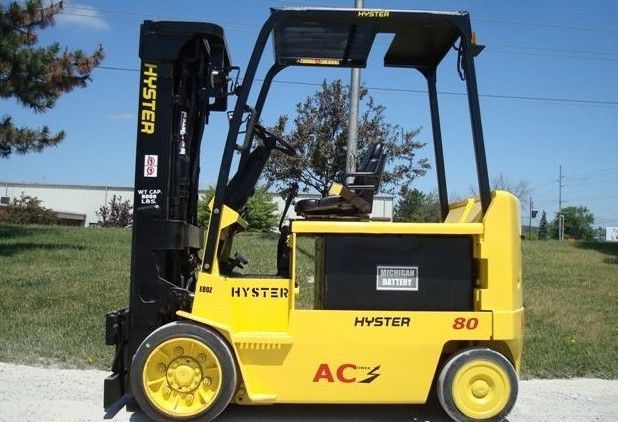

Hyster E70Z (48V)
Contents:
Dimensions
| Length To Fork Face | 7.8 ft in (2377 mm) |
| Overall Width | 3.85 ft in (1171 mm) |
| Overall Height - Mast Lowered | 6.96 ft in (2121 mm) |
| Wheelbase | 5.17 ft in (1575 mm) |
| Ground Clearance | 4.49 in (114 mm) |
| Height To Top Of Overhead Guard | 7.85 ft in (2390 mm) |
| Max Fork Height | 10.18 ft in (3100 mm) |
| Right Angle Stack | 12.35 ft in (3764 mm) |
| Turning Radius | 6.89 ft in (2099 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 95 ft/min (28.96 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 6999.68 lb (3175 kg) |
| Lift Speed | 118 ft/min (35.97 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 13450.5 lb (6101 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.4 mph (16.7 km/h) |
