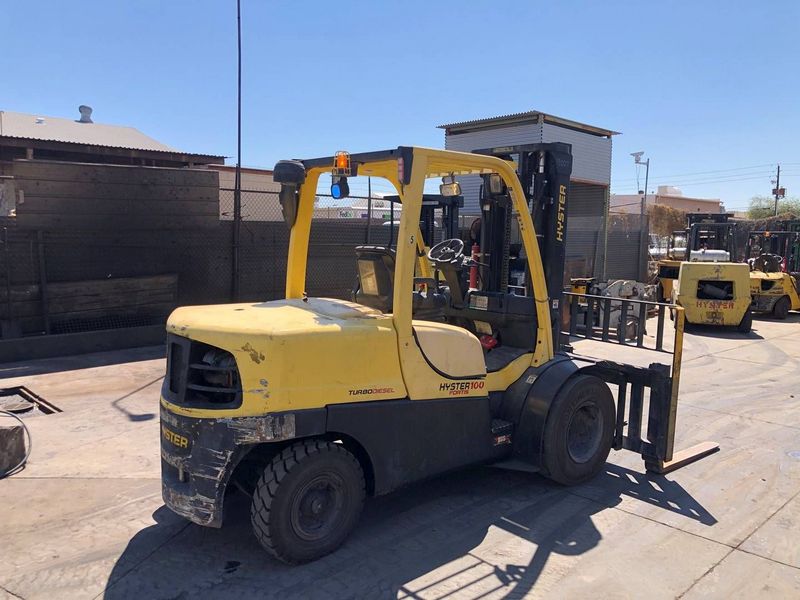

Hyster H100FT DM2 LP
Contents:
Dimensions
| Length To Fork Face | 10.69 ft in (3256 mm) |
| Overall Width | 4.76 ft in (1450 mm) |
| Overall Height - Mast Lowered | 7.27 ft in (2214 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 9.34 in (237 mm) |
| Height To Top Of Overhead Guard | 7.55 ft in (2300 mm) |
| Max Fork Height | 9.19 ft in (2800 mm) |
| Turning Radius | 9.31 ft in (2837 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 49.69 in (1262 mm) |
| Lower Speed | 82.7 ft/min (25.21 m/min) |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 10020.01 lb (4545 kg) |
| Lift Speed | 112.2 ft/min (34.2 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Engine Model | GM 4.3L |
| Power | 103 hp (76.9 kw) |
| Torque | 225 lb ft (305.1 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262 cu in (4.3 L) |
| Torque Measured @ | 2400 rpm |
| Fuel Type | LP |
Operational
| Operating Weight | 15297.9 lb (6939 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 14.4 mph (23.2 km/h) |
