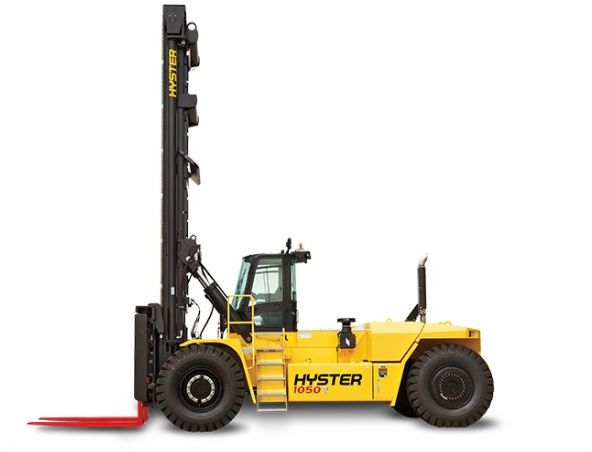

Hyster H1050HDS
Contents:
Dimensions
| Length To Fork Face | 25.2 ft in (7680 mm) |
| Overall Width | 13.78 ft in (4200 mm) |
| Overall Height - Mast Lowered | 16.93 ft in (5160 mm) |
| Wheelbase | 17.67 ft in (5385 mm) |
| Ground Clearance | 18.59 in (472 mm) |
| Height To Top Of Overhead Guard | 12.73 ft in (3880 mm) |
| Max Fork Height | 14.47 ft in (4410 mm) |
| Gradeability | 41 % |
| Turning Radius | 23.3 ft in (7100 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 106.5 in (2705 mm) |
| Load Capacity | 105000 lb (47627.21 kg) |
| Lift Speed | 51 ft/min (15.55 m/min) |
| Load Center | 48 in (1219 mm) |
| Lower Speed | 98 ft/min (29.88 m/min) |
Engine
| Emission Tier Level | TIER 4F |
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | QSL 9 |
| Power | 350 hp (261 kw) |
| Torque | 1200 lb ft (1627 Nm) |
| Power Measured @ | 2100 rpm |
| Displacement | 543.2 cu in (8.9 L) |
| Fuel Type | Diesel |
| Alternator | 120 amps |
Operational
| Def Tank Capacity | 15 gal (56.8 L) |
| Operational Weight | 133402 lb (60510.2 kg) |
| Tire Type | Pneumatic |
| Max Speed | 11.7 mph (18.9 km/h) |
| Oil System Fluid Capacity | 26.5 gal (100 L) |
| Drawbar Pull | 100491 lb (45582 kg) |
| Fuel Capacity | 219 gal (829.1 L) |
| Front Tire Size | 18.00 x 25-40PR |
| Hydraulic System Fluid Capacity | 174 gal (658.7 L) |
| Rear Tire Size | 18.00 x 25-40PR |
| Axle Load - Front | 222951 lb (101128.9 kg) |
| Axle Load - Rear | 15451 lb (7008.5 kg) |
Transmission
| Drive System | Powershift Transmission |
| Number Of Forward / Reverse Speeds | 4 / 4 |
| Transmission Type | SOH TE-32 |
Brakes
| Service Brake | Oil immersed (wet) disc |
| Parking Brake | Spring apply, dry disc |
