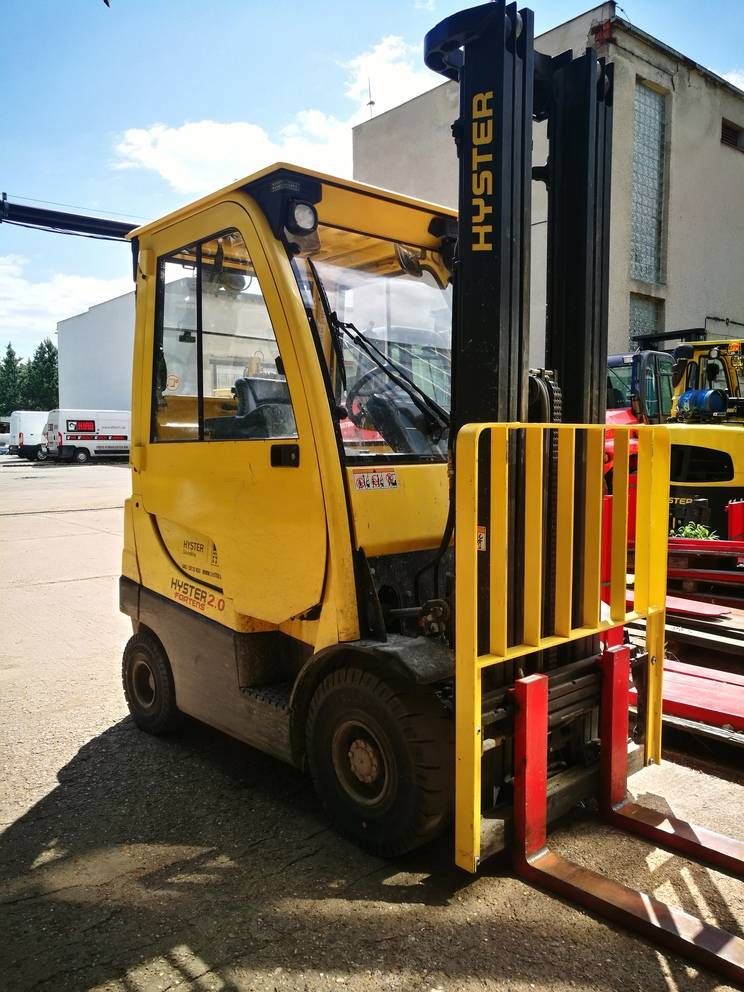

Hyster H2.0FT DM LPG
Contents:
Dimensions
| Length To Fork Face | 8.16 ft in (2486 mm) |
| Overall Width | 3.8 ft in (1157 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 5.33 ft in (1623 mm) |
| Ground Clearance | 6.3 in (160 mm) |
| Height To Top Of Overhead Guard | 7.09 ft in (2160 mm) |
| Max Fork Height | 10.67 ft in (3250 mm) |
| Turning Radius | 7.06 ft in (2149 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Lower Speed | 82.68 ft/min (25.2 m/min) |
| Load Capacity | 4409.25 lb (2000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 112.21 ft/min (34.21 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2357 |
| Engine Model | Mazda F2 |
| Power | 51 hp (38 kw) |
| Power Measured @ | 2700 rpm |
| Displacement | 133.3 cu in (2.2 L) |
| Fuel Type | LPG |
Operational
| Operating Weight | 8130.7 lb (3688 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (18 km/h) |
