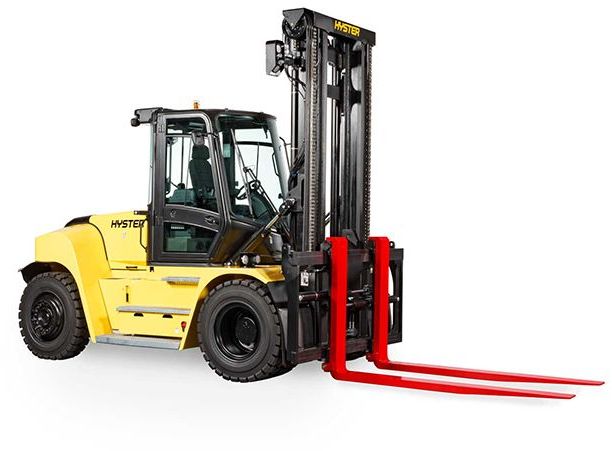

Hyster H230HD2S
Contents:
Dimensions
| Length To Fork Face | 14.16 ft in (4313 mm) |
| Overall Width | 8.09 ft in (2464 mm) |
| Overall Height - Mast Lowered | 11.5 ft in (3503 mm) |
| Wheelbase | 8.86 ft in (2700 mm) |
| Ground Clearance | 9.85 in (250 mm) |
| Height To Top Of Overhead Guard | 9.92 ft in (3021 mm) |
| Front Tread Range | 72.52 in (1842 mm) |
| Gradeability | 44 % |
| Rear Tread Range | 75.99 in (1930 mm) |
| Turning Radius | 12.89 ft in (3926 mm) |
Mast
| Mast Tip Forward | 15 degrees |
| Mast Tip Rear | 12 degrees |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 23000.83 lb (10433 kg) |
| Lift Speed | 79 ft/min (24.08 m/min) |
| Lower Speed | 98 ft/min (29.88 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Cummins |
| Engine Model | QSB 4.5 |
| Power | 159.6 hp (119 kw) |
| Torque | 460.3 lb ft (624 Nm) |
| Power Measured @ | 2300 rpm |
| Displacement | 272 cu in (4.5 L) |
| Torque Measured @ | 1500 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 31510.7 lb (14293 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Drawbar Pull | 21400 lb (9706.9 kg) |
| Oil System Fluid Capacity | 26.5 gal (100 L) |
| Operating Voltage | 24 V |
| Fuel Capacity | 27.5 gal (104 L) |
| Front Tire Size | 10.00-20 16PR |
| Hydraulic System Fluid Capacity | 35.7 gal (135 L) |
| Rear Tire Size | 10.00-20 16PR |
| Alternator Supplied Amperage | 120 amps |
| Axle Load - Front | 49941 lb (22652.9 kg) |
| Axle Load - Rear | 4570 lb (2073 kg) |
Transmission
| Number Of Forward / Reverse Speeds | 3 / 3 |
| Drive System | Powershift Transmission |
| Transmission Type | ZF WG161 |
Brakes
| Service Brake | Oil immersed (wet) disc |
| Parking Brake | Spring applied, dry disc on drive axle |
