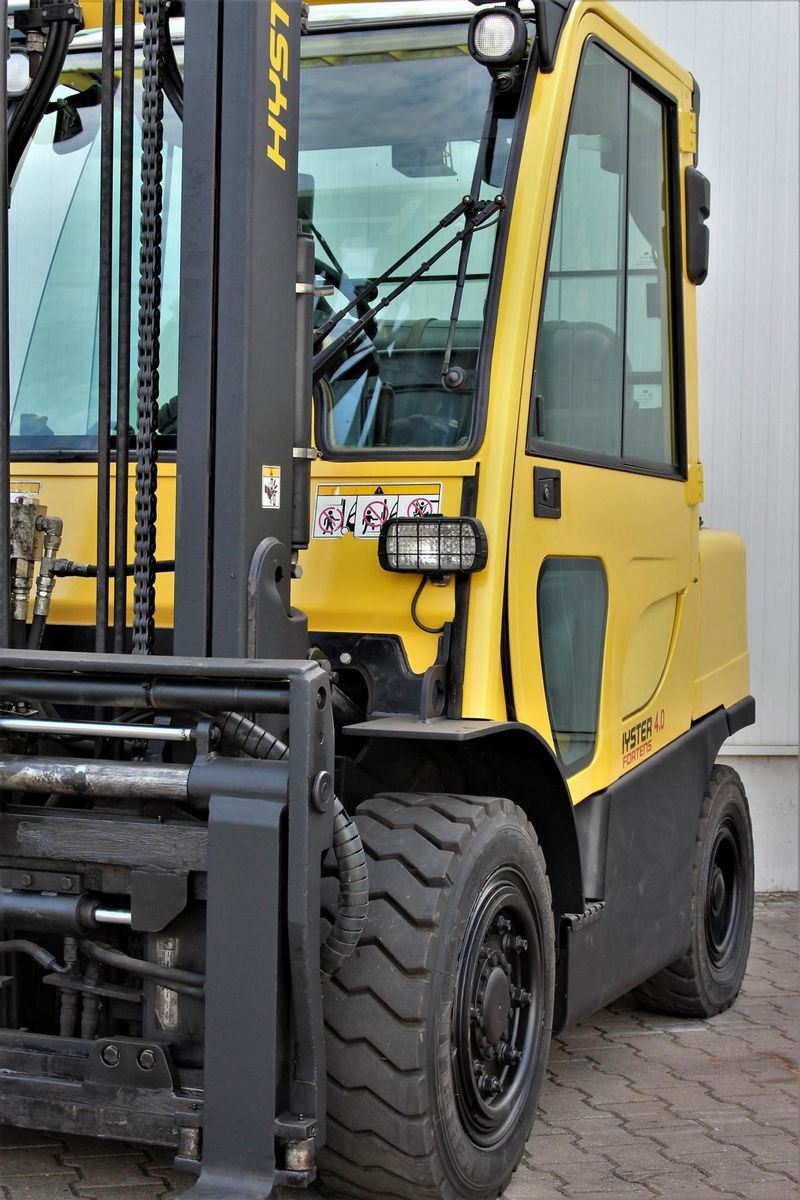

Hyster H4.0FT5 DuraMatch Diesel
Contents:
Dimensions
| Length To Fork Face | 9.67 ft in (2945 mm) |
| Overall Width | 4.6 ft in (1402 mm) |
| Overall Height - Mast Lowered | 7.14 ft in (2175 mm) |
| Wheelbase | 6.01 ft in (1830 mm) |
| Ground Clearance | 5.95 in (151 mm) |
| Height To Top Of Overhead Guard | 7.41 ft in (2258 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 8.44 ft in (2570 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 92.52 ft/min (28.2 m/min) |
| Load Capacity | 8818.49 lb (4000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 129.93 ft/min (39.6 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | QSB3.3 |
| Power | 60 hp (44.8 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 201.4 cu in (3.3 L) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 13884.8 lb (6298 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.2 mph (19.5 km/h) |
