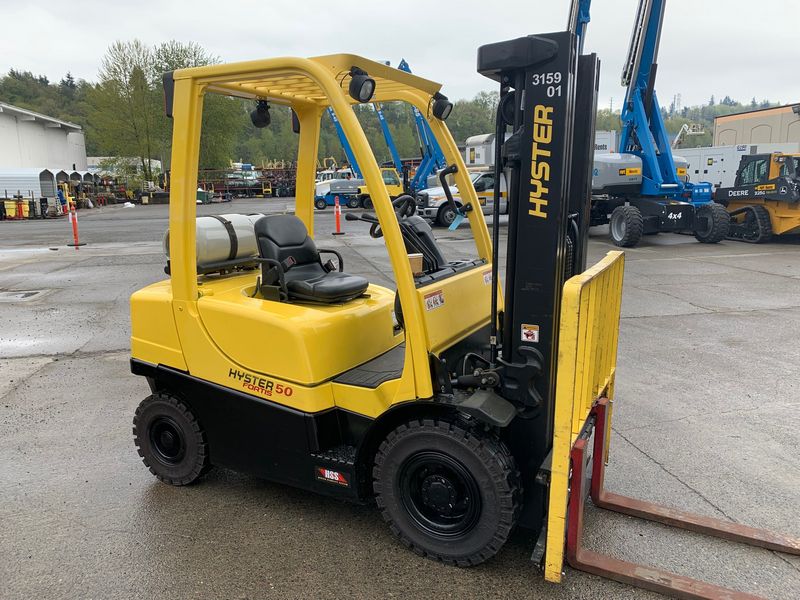

Hyster H50FT
Contents:
Dimensions
| Length To Fork Face | 8.53 ft in (2599 mm) |
| Overall Width | 3.8 ft in (1157 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 5.33 ft in (1623 mm) |
| Ground Clearance | 6.3 in (160 mm) |
| Height To Top Of Overhead Guard | 7.09 ft in (2160 mm) |
| Max Fork Height | 10.81 ft in (3292 mm) |
| Gradeability | 32 % |
| Right Angle Stack | 8.82 ft in (2686 mm) |
| Turning Radius | 7.06 ft in (2149 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 6 degrees |
| Lower Speed | 114 ft/min (34.75 m/min) |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
| Lift Speed | 120 ft/min (36.58 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | PSI 2.4L |
| Power | 59 hp (44 kw) |
| Torque | 121 lb ft (164.1 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 143 cu in (2.4 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 8399 lb (3809.8 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.8 mph (19 km/h) |
| Drawbar Pull | 4952 lb (2246.2 kg) |
| Fuel Capacity | 13.9 gal (52.7 L) |
| Front Tire Size | 7.00 x 12 - 12 |
| Rear Tire Size | 6.00 x 9 |
| Hydraulic System Relief Valve Pressure | 2250 psi (15513.2 kPa) |
| Hydraulic Tank | 12.1 gal (45.9 L) |
| Axle Load - Front | 3776 lb (1712.8 kg) |
| Axle Load - Rear | 4623 lb (2097 kg) |
Brakes
| Service Brake | Foot/Hydraulic |
| Parking Brake | Hand/Mechanical |
