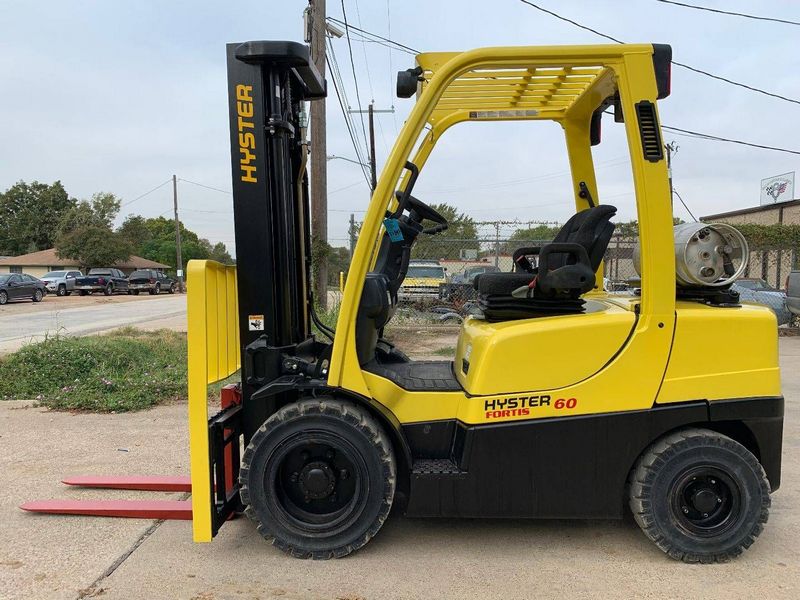

Hyster H60FT DM+ Gas
Contents:
Dimensions
| Length To Fork Face | 8.64 ft in (2633 mm) |
| Overall Width | 3.8 ft in (1157 mm) |
| Overall Height - Mast Lowered | 7.37 ft in (2245 mm) |
| Wheelbase | 5.33 ft in (1623 mm) |
| Ground Clearance | 5.95 in (151 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.53 ft in (3209 mm) |
| Turning Radius | 7.48 ft in (2277 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 43.27 in (1099 mm) |
| Lower Speed | 83 ft/min (25.3 m/min) |
| Load Center | 24.02 in (610 mm) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Lift Speed | 106 ft/min (32.31 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2374 |
| Engine Model | GM 2.4L |
| Power | 62 hp (46.3 kw) |
| Torque | 124 lb ft (168.2 Nm) |
| Displacement | 146.8 cu in (2.5 L) |
| Torque Measured @ | 2650 rpm |
| Fuel Type | Gas |
Operational
| Operating Weight | 9784.2 lb (4438 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.1 mph (13 km/h) |
