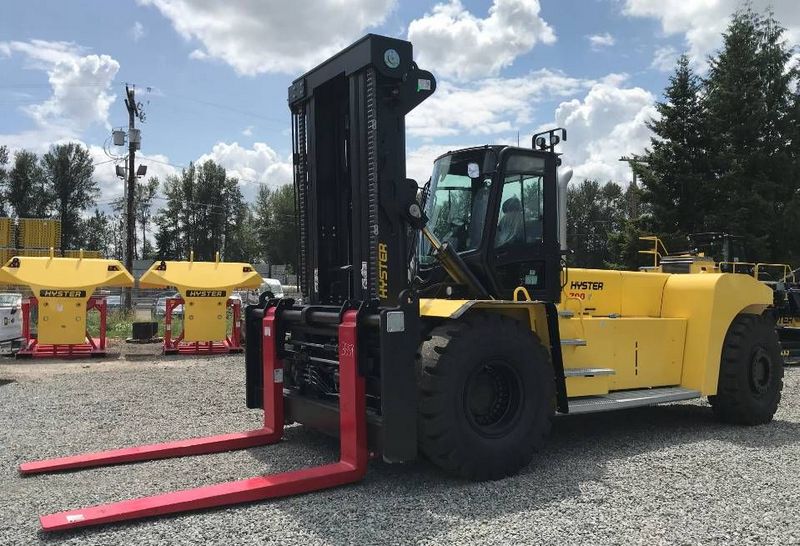

Hyster H700HD
Contents:
Dimensions
| Length To Fork Face | 23.01 ft in (7012 mm) |
| Overall Width | 11.26 ft in (3430 mm) |
| Overall Height - Mast Lowered | 11.87 ft in (3616 mm) |
| Wheelbase | 15.84 ft in (4825 mm) |
| Ground Clearance | 19.77 in (502 mm) |
| Height To Top Of Overhead Guard | 11.33 ft in (3452 mm) |
| Max Fork Height | 10.36 ft in (3155 mm) |
| Gradeability | 36 % |
| Turning Radius | 22.47 ft in (6848 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 122.37 in (3108 mm) |
| Load Capacity | 70000 lb (31751.47 kg) |
| Lift Speed | 53 ft/min (16.16 m/min) |
| Load Center | 48.04 in (1220 mm) |
| Lower Speed | 98 ft/min (29.88 m/min) |
Engine
| Emission Tier Level | TIER 4F |
| Battery | 900 CCA |
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | QSB 6.7L |
| Power | 260 hp (193.9 kw) |
| Torque | 730 lb ft (989.8 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Torque Measured @ | 1500 rpm |
| Fuel Type | Diesel |
| Alternator | 120 amps |
Operational
| Operational Weight | 97508 lb (44228.9 kg) |
| Tire Type | Pneumatic |
| Max Speed | 16 mph (25.8 km/h) |
| Drawbar Pull | 54900 lb (24902.3 kg) |
| Operating Voltage | 24 V |
| Fuel Capacity | 96 gal (363.4 L) |
| Front Tire Size | 16.00 x 25-32PR |
| Hydraulic System Fluid Capacity | 86 gal (325.6 L) |
| Rear Tire Size | 16.00 x 25-32PR |
| Axle Load - Front | 152750 lb (69286.3 kg) |
| Axle Load - Rear | 14760 lb (6695.1 kg) |
Transmission
| Number Of Forward / Reverse Speeds | 5 / 3 |
| Drive System | Powershift Transmission |
| Transmission Type | ZF WG 211 |
Brakes
| Service Brake | Oil immersed (wet) disc |
| Parking Brake | Spring apply, dry disc |
