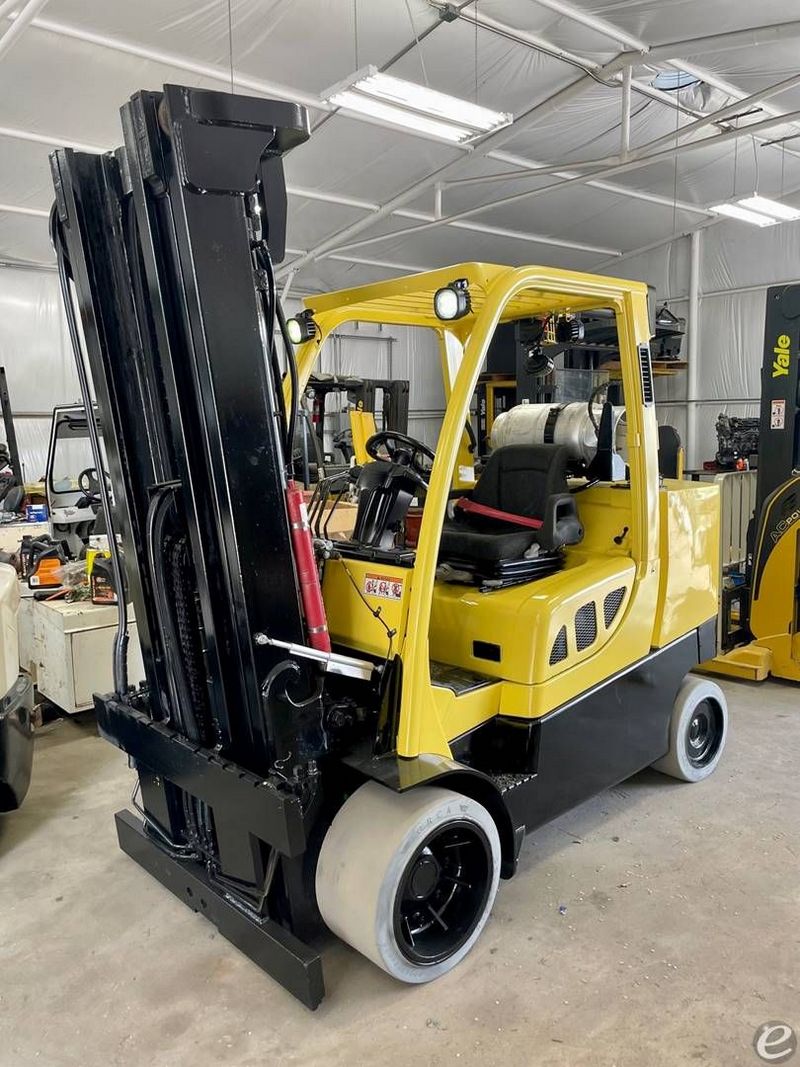

Hyster S120FT PRS DM2 LP
Contents:
Dimensions
| Overall Width | 4.34 ft in (1320 mm) |
| Overall Height - Mast Lowered | 7.02 ft in (2138 mm) |
| Wheelbase | 5.88 ft in (1790 mm) |
| Ground Clearance | 6.15 in (156 mm) |
| Height To Top Of Overhead Guard | 7.14 ft in (2175 mm) |
| Turning Radius | 7.8 ft in (2375 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 6 degrees |
| Load Center | 24.02 in (610 mm) |
| Max Fork Spread | 38.27 in (972 mm) |
| Lower Speed | 82.7 ft/min (25.21 m/min) |
| Lift Speed | 112.2 ft/min (34.2 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Engine Model | GM 4.3L |
| Power | 98 hp (73.1 kw) |
| Torque | 210 lb ft (284.8 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262 cu in (4.3 L) |
| Torque Measured @ | 2400 rpm |
| Fuel Type | LP |
Operational
| Operating Weight | 18686.4 lb (8476 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.1 mph (19.5 km/h) |
